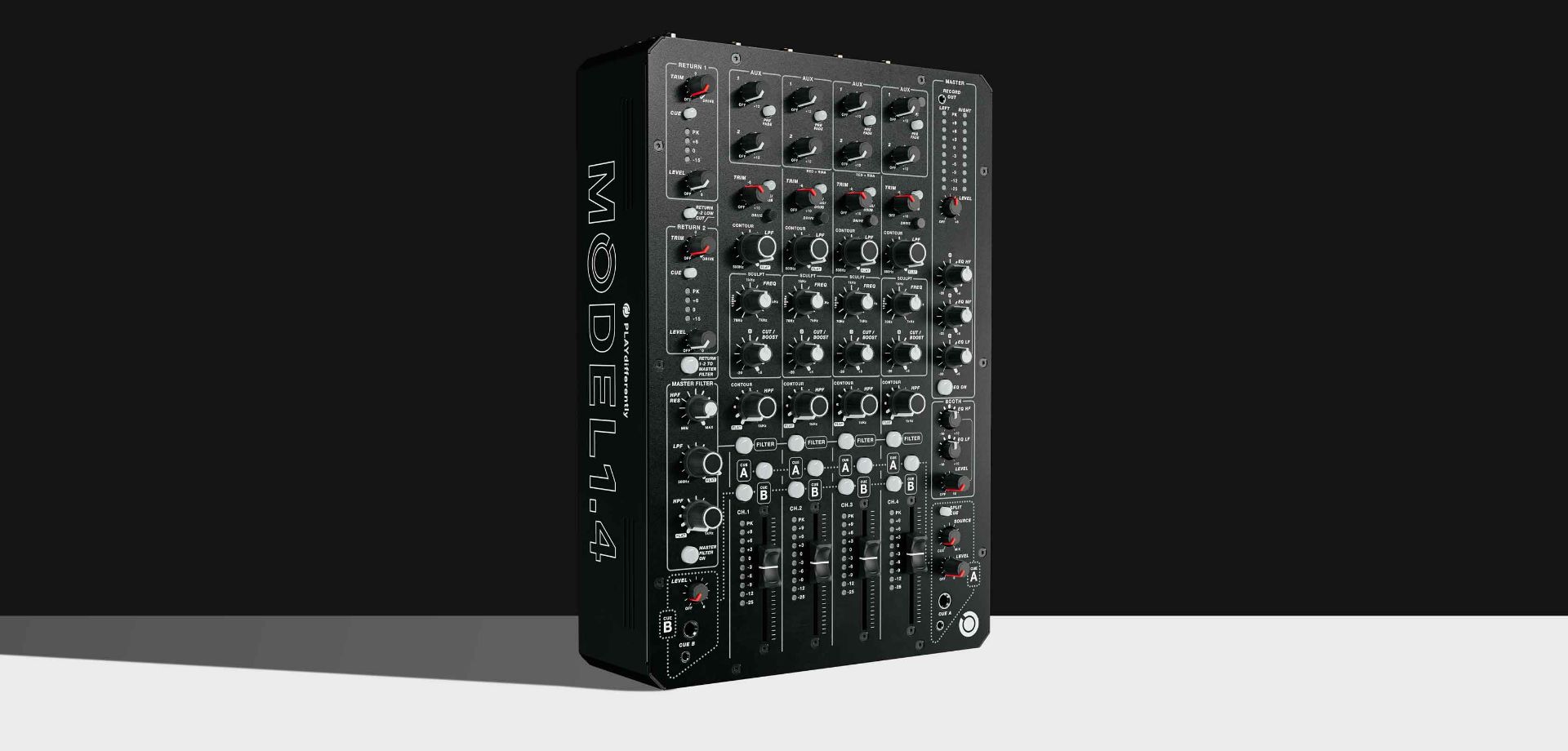

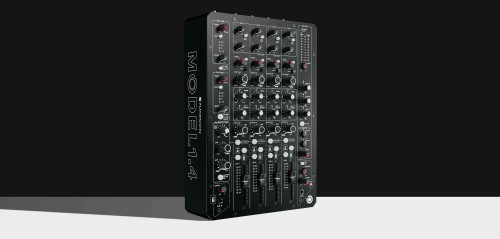

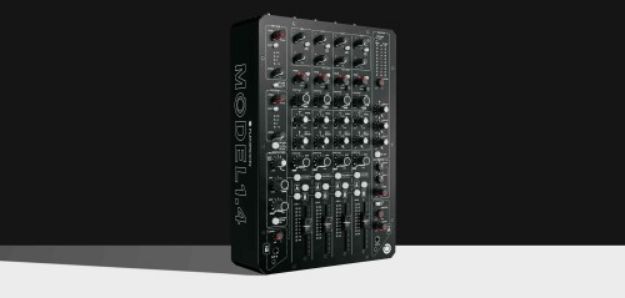

With MODEL 1 we hit the apex of pure analogue DJ mixer design. Now we’re bringing MODEL 1 performance to an ultra compact 4 channel design, ideal for home studio use, or as the ultimate tour-able analogue mixer…so you can take your analogue core wherever you go.
Engineered by Andy Rigby-Jones and co designed by Richie Hawtin with feedback from artists, clubs and engineers, MODEL 1.4 features the same uncompromising approach to build quality, precision and detail that set MODEL 1 in a class of its own.
MODEL 1.4 can be used standalone or paired with a MODEL1 using unique mixer link functionality to deliver an unrivalled 10 Channel Live mix experience.
MODEL 1.4 Technical Specifications
Maximum output level +28dBu Balanced, +23dBu Unbalanced
Output Impedance 50R Balanced, 68R Unbalanced
Residual Noise -100dBu Un-weighted, 22Hz to 20k
Dynamic range > 112dB
Frequency Response 20Hz - 40kHz +0/-2dB
Distortion (THD+N) 0.008% Line In to Mix 1 out, 0dBu Unity Gain
Inter-channel Crosstalk < -100dB
Left/Right Crosstalk -80dB 1kHz
Power consumption 45W maximum
Weight 5.00kg
Dimensions L 368mm x W 248mm x H 111mm
