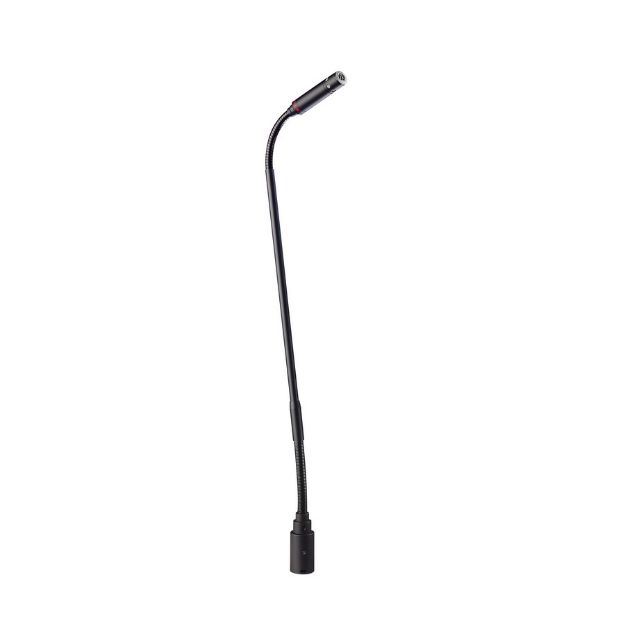

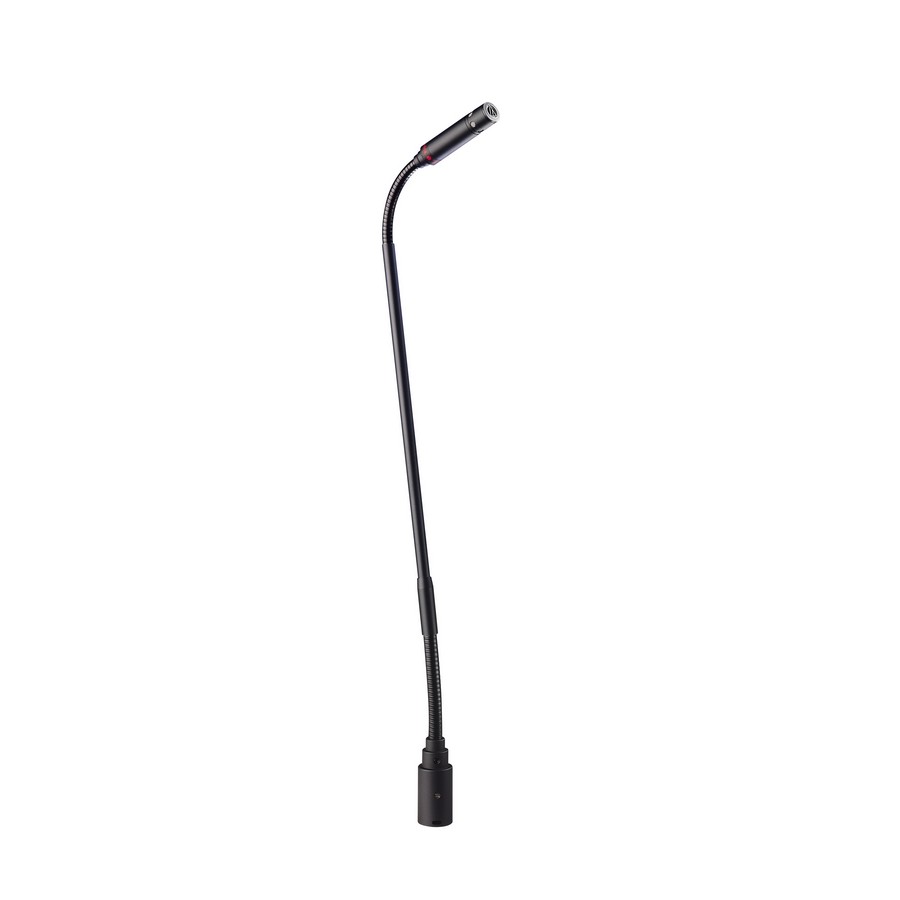

The PRO 49Q quick mount double gooseneck cardioid condenser microphone is designed to plug into any standard XLRF type surface or cable connector. With a flat, smooth frequency response and self contained electronics, this mic features a quiet, fixed placement, long life gooseneck and wide range condenser element with low mass diaphragm for superior performance. Available in two lengths: 13.07" (PRO 49Q); 16.46” (PRO 49QL).
Wide range condenser element with low mass diaphragm for superior performance
Self contained electronics eliminate need for external power modules
Flat, smooth frequency response
Quiet, fixed placement long life gooseneck
Plugs into any standard XLRF type surface or cable connector
Overall length of 332.0 mm
Also available in a 418.0 mm long version as PRO 49QL
SPECIFICATIONS
ELEMENT Fixed charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 70-16,000 Hz
OPEN CIRCUIT SENSITIVITY -37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE 100O
MAXIMUM INPUT SOUND LEVEL 134 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (TYPICAL) 106 dB, 1 kHz at Max SPL
SIGNAL TO NOISE RATIO 66 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 9-52V DC, 2 mA typical
WEIGHT 80 g
DIMENSIONS 332.0 mm long, 12.0 mm head diameter, 18.9 mm base diameter
OUTPUT CONNECTOR Integral 3 pin XLRM type
ACCESSORIES FURNISHED AT8146 windscreen OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8146 windscreen ACCESSORIES FURNISHED AT8146 windscreen
