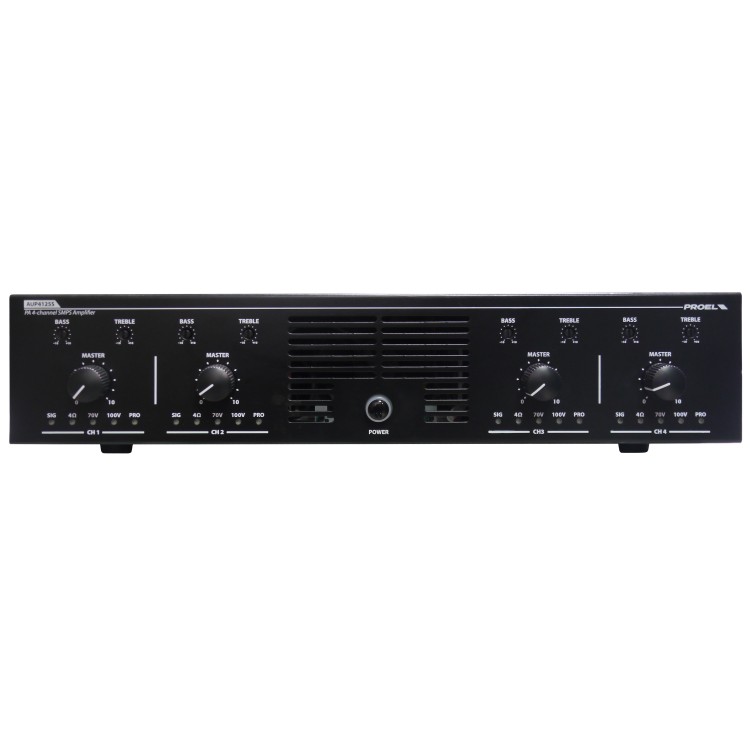

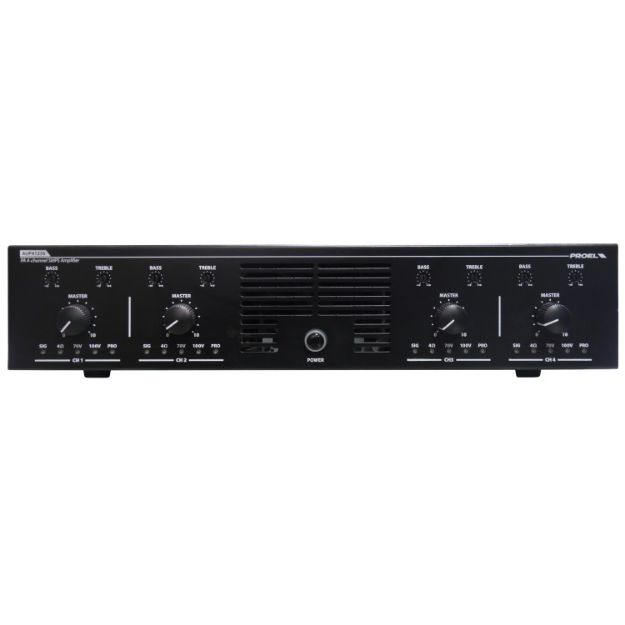

Proel 100V Power Amp 4 x 250W

Main features:

4-8 ohm constant impedance output and 25/70/100 constant voltage
Independent line signal Input/output for 4 channels
Main master control for each channel and in an independent way
PA - HF filter rear insertion
Ground lift rear selector
Power supply rear selector 230V/117Vca 50/60Hz
Low and high tone control
Telephone input


Model: AUP4250S
Output power RMS: 4 x 250W
Inputs: 4 X balanced line - 4 X Priority unbalanced line
Input Sensitivity: Line: 1V/47kO - variable gain 600O
Controls:4 Master volume controls - 4 treble tone controls - 4 bass tone controls
Loudspeakers outputs: 100/70V/4O
Frequency response: 20Hz -20khz (-3dB)
Distortion (THD): < 0.5% (@ Pnom 1KHz)
S/N Ratio: =90dB
Power Supply: 230/117Vac 50/60Hz
Operating temperature: 0 -40°C
Input/Output Connectors: screw terminals/terminal block
Power Consumption: 2000VA
Dimensions (LxHxP) (mm): 434x88.5x425 – 2 rack units 19”
Weight 10.35Kg
