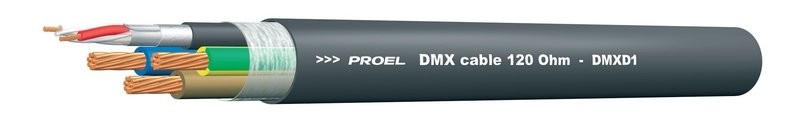

Constant impedance DMX 1 audio balanced twisted pair cable (2 x 0,25 mm2) and power cable (3 x 1,5 mm2) with small diameter flexible flame resistant PVC overall Jacket. Black colour.
Sold and Priced by the Metre
Technical Specifications
•Application fields: Standard DMX connections / Light/colour changer scanner connections
•Conductors: Bare copper:
•Audio: 24 AWG = 14 x 0.15 mm (0.25 mm2) - Complying with IEC 228 Class 5 regulations
•Power: 16 AWG = 3 x 1.5 mm (1.55 mm2)
•Insulation:
•Audio: PE Ø 1.80 mm red/natural
•Power: flame resistant PVC Ø 4.5 mm - Complying with IEC 332.1 regulations
•Shield:
•Conductors: Aluminium/Mylard foil 100% - Tinned copper braid 90%
•Cable: Non wovens
•Jacket:
•Audio conductors: flame resistant flexible PVC Ø 4.50 mm
•Cable: flame resistant flexible PVC Ø 9.80 mm - Complying with IEC 332.1 regulations
•Color: Black
•Electrical resistance: 85 Ohm/Km (conductor) @ 20°C / 17 Ohm/Km (shield) @ 20°C
•Electrical capacitance: 40 pF/m (conductor/conductor) @ 1 KHz / 71 pF/m (conductor/shield) @ 1 KHz
•Nominal impedance: 120 Ohm
•Operating temperature: -20°C / +80°C
•Working tension:
•Power: 300/500V
•< 50 V AC (Signal)
•< 75 V DC (Signal)
•Weight: 146 Kg/Km
•Minumum bending radius: 25 mm
•Packaging: 100 m wooden or wood fiber reel
