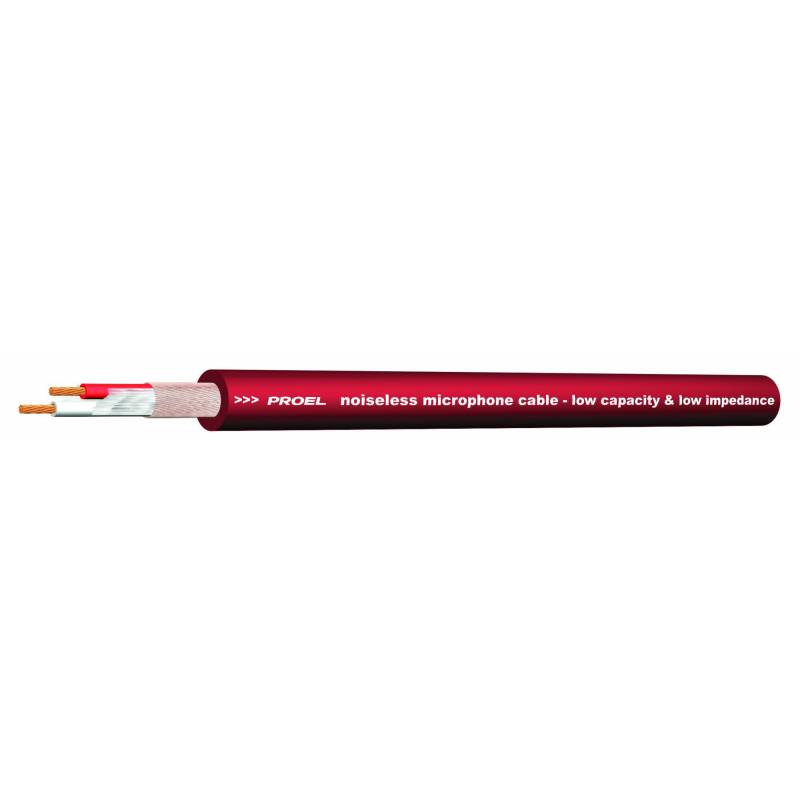

Proel Bulk Mic Cable 90% Spiral Shield RED

Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket - O.F.C. (Oxygen Free Copper).Available colours: Black, Blue, Bronze, Green, Purple, Red, Yellow. Priced and sold by the metre

Technical Specifications

•Application fields: Recording studios / Microphone connections
•Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2)
•Insulation: Super flexible PVC HT105 Ø 1.60 mm
•Shield: Spiral copper 16x5x0.10 mm > 90%
•Jacket: Flexible PVC 60 shore Ø 6.50 mm
•Color: Red
•Electrical resistance:
•93 Ohm/Km (conductor) @ 20°C
•20 Ohm/Km (shield) @ 20°C
•Electrical capacitance:
•46 pF/m (conductor/conductor) @ 1 KHz
•90 pF/m (conductor/shield) @ 1 KHz
•Velocity of propagation: 80 %
•Operating temperature: -20°C / +70°C
•Working tension:
•< 50 V AC
•< 75 V DC
•Weight: 46 Kg/Km
•Minumum bending radius: 20 x cable section radius
•Packaging:
•100 m reel
•300 m wooden reel (HPC210BKR300)
•500 m wooden reel (HPC210BKR500)
