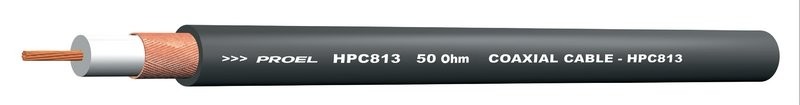

Digital audio/video single shielded cable.
Priced and sold by the Metre
TECHNICAL SPECIFICATIONS
Application fields: RF signals
Ethernet signals
TV device interconnections
BNC and RCA connections
Conductors: Bare copper
13 AWG = 7 x 0.75 mm (2.5 mm²)
Insulation: PE ø 7.20 mm
Display: Bare copper braid 100%
Jacket: PVC ø 10.30 mm
Conductor resistance: 6 Ohm/Km @ 20°C
Shield resistance: 4 Ohm/Km @ 20°C
Conductor/conductor capacitance: 97 pF/mt @ 1KHz
Nominal Impedance: 50 ohm
Attenuation: 10 MHz = 2.00 dB/100 mt
100 MHz = 6.25 dB/100 mt
1000 MHz = 20.00 dB/100 mt
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Working voltage: 5000 V
Minumum bending radius: 5x overall diameter
Weight: 172 Kg/Km
Colours Available: Dull black
Notes: 100 mt. reel
