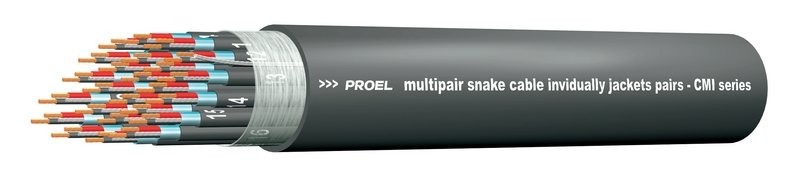

The CMI series of multipair cables consists of 100% shielded pairs (two insulated conductors twisted together with drain wire in order to grant a total protection against crosstalk effects), individually number-printed and coloured to allow an easy identification (therefore reducing connection time). The PVC overall jacket offers a good flexibility even at high temperatures. The cables extreme flexibility allows an easy winding.
Priced and sold by the Metre
Technical Specifications
•Application fields: Live events monitoring
•Stage Boxes
•Conductors: Bare copper
•24 AWG = 28 x 0.10 mm (0.22 mm²)
•Insulation: XLPE ø 1 mm
•Display: CONDUCTORS
•Aluminium-Mylar 100%
•CABLE
•Cotton tape 100%
•Drain wire: Tinned copper
•24 AWG = 7 x 0.18 mm (0.22 mm²)
•Jacket: PAIRS
•PVC ø 2.80 mm
•CABLE
•PVC 70 shore
•ø 9.30 mm
•Conductor resistance: < 87 Ohm/Km @ 20°C
•Conductor/conductor capacitance: 63 pF/mt @ 1 KHz
•Conductor/shield capacitance: 107 pF/mt @ 1 KHz
•Nominal Impedance: 80 Ohm ± 3 Ohm
•Attenuation: 1 MHz = 2.10 dB/100 mt
•3 MHz = 3.60 dB/100 mt
•6 MHz = 5.00 dB/100 mt
•8 MHz = 5.80 dB/100 mt
•10 MHz = 6.50 dB/100 mt
•Velocity of propagation: 66 %
•Operating temperature: -20°C / +80°C
•Working voltage: 700 V AC
•1000 V DC
•Minumum bending radius: 18x overall diameter
•Weight: 164 kg/Km
•Colours Available: Dull black
•Notes: 100 mt. wooden reel
