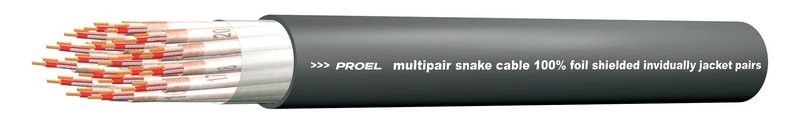

The CMN series of multipair cables consists of 100% shielded pairs individually insulated with number-printed transparent polypropylene (two XLPE jacket insulated conductors twisted together with drain wire in order to grant a total protection against crosstalk effects). The PVC overall jacket is made in accordance with CEI 20.20II and IEC 332.1 regulations (flame retardant jacket). Moreover, it offers a good flexibility even at very high temperatures. The cable extreme flexibility allows an easy winding.
Priced and sold by the Metre
Technical Specifications
•Application fields: Live events monitoring
•Stage boxes
•Recording studios
•Conductors: Bare copper
•26 AWG = 18 x 0.10 mm (0.14 mm²)
•Insulation: XLPE ø 1 mm white/red
•Shield: CONDUCTORS
•Aluminium foil copper colour 100%
•CABLE
•Cotton tape 100%
•Drain wire: Tinned copper
•24 AWG = 7 x 0.18 mm (0.22 mm²)
•Jacket: PAIRS
•Number-printed transparent PP ø 2.80 mm
•CABLE
•Flexible flame retardant PVC 60 shore
•ø 11.90 mm
•Complying with CEI 20.20II / IEC 332.1 regulations
•Conductor resistance: 127 Ohm/Km @ 20°C
•Shied resistance: 99 Ohm/Km @ 20°C
•Conductor/conductor capacitance: 52 pF/mt @1 KHz
•Conductor/shield capacitance: 89 pF/mt @ 1 KHz
•Nominal Impedance: 100 ± 3 Ohm
•Attenuation: 1 MHz = 2.20 dB/100 mt
•3 MHz = 3.90 dB/100 mt
•6 MHz = 5.50 dB/100 mt
•8 MHz = 6.40 dB/100 mt
•10 MHz = 7.10 dB/100 mt
•Velocity of propagation: 66 %
•Operating temperature: -20°C / +80°C
•Test voltage: 700 V AC
•1000 V DC
•Minimum bending radius: 10x overall diameter
•Colours Available: Dull black
