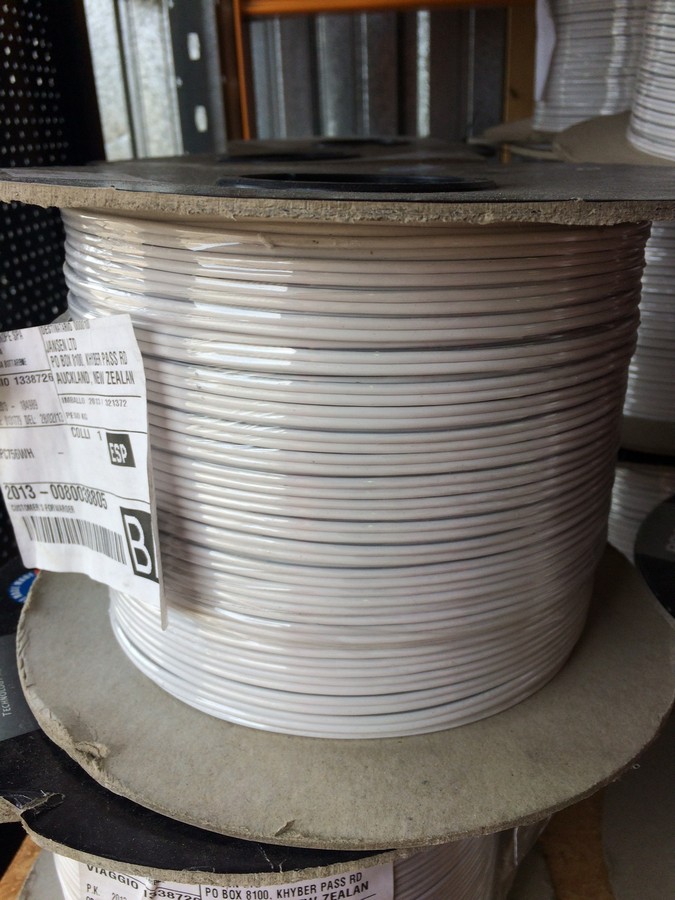

SUPPLIED by the REEL 200 Metres
Professional bare copper 2-conductors flat cable for passive loudspeakers, with flexible PVC overall jacket. Section: 1,00 mm2. Colour: WHITE
Priced and sold by the Metre
TECHNICAL SPECIFICATIONS
Application fields: Passive speaker connections - Home HI-FI
Conductors: Extra fine bare copper 17AWG 32X0,20mm
Cable section: 1,00 mm2/AWG17
Jacket: Flexible Black/Red PVC 60 shore
Overall diameter: 2 x ø 2,80 mm
Electrical Resistance @ 20°C: 19,50 Ohm/Km (conductor)
Electrical Capacitance @ 1 KHz: 114 pF/m (conductor)
Operating temperature: -30°C / +70°C at fixed laying
Minimum bending radius: 4 x overall diameter
Weight: 32,40 Kg/Km
Available colours: WHITE
Packaging: 200 m standard reel
