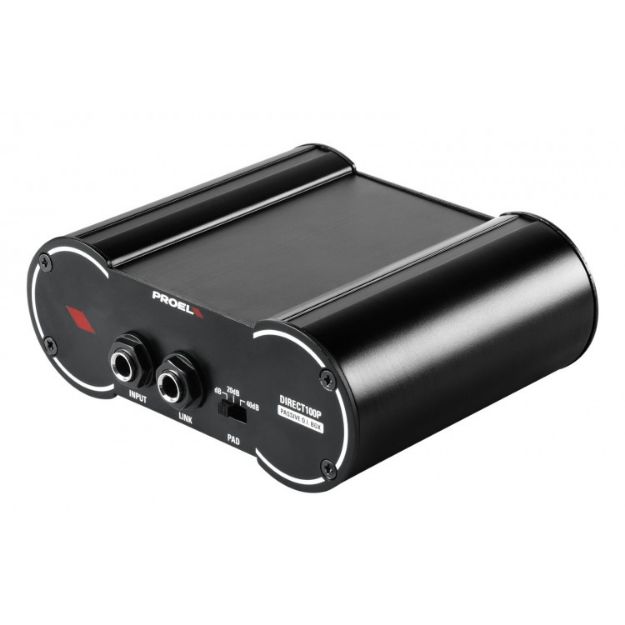

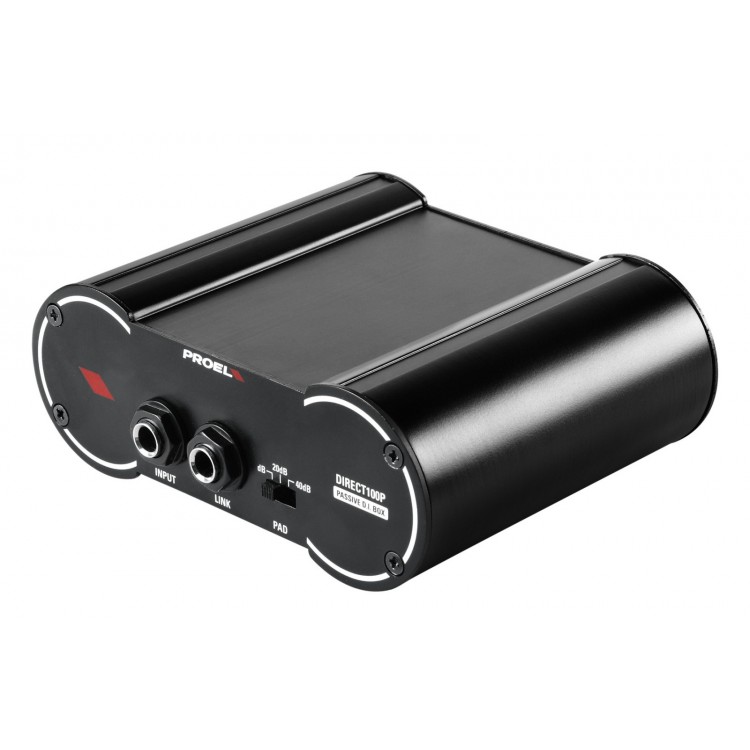

PROEL introduces in the STAGE GEAR family a Series of 8 new exciting models. The 100 Series includes a range of accessories and useful tools, ranging from D.I. Boxes and Headphone Amps to Signal Splitters, Tube Preamps and Power Supply Units, designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell and sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage proof reliability in a very affordable package
High quality isolation transformer for ultra-flat frequency response
High quality electronic components
¼” JACK input and link connectors
XLR-M balanced output
20dB & 40dB PAD and GND lift switch
Stackable aluminum shell
Input Section
Input Impedance >250 Kohm
Max Input Level +10 (PAD at 0) / +30 (PAD at 20) / +50 (PAD at 40) dBu
Connectors 1 x 1/4" jack unbalanced
Link 1 x 1/4" jack unbalanced
Output Section
Output Transformer Balanced (isolated with shielding)
Insertion Loss 26 dB
Load Impedance 600 Ohms or greater
Connector XLR male
System Performance
Distortion THD 50÷20k Hz 0dBu < 0.007 %
Frequency Response 40 Hz to 20 kHz (-3 dB)
General
Controls PAD 0 / -20 / -40, GND LIFT
Dimensions (W x H x D) 134 x 50 x 105 mm
Weight (excluding batteries) 0,55 Kg
