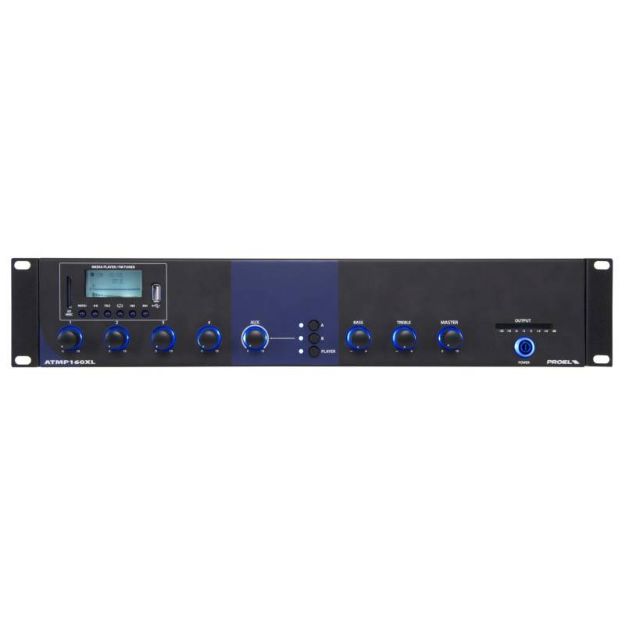

160W, Class D, Combo amplifier, FM Tuner, MP3 player on SD/MCC/USB/Bluetooth, 4 balanced inputs MIC/MIC Phantom/LINE, Euroblock, 3 AUX, independent priority and CHIME, 70/100V/8O/4O Outputs, Overload/short circuit protection, Led meter, Low/High Tone controls, Illuminated knobs, Autoswitch SMPS
Specifications;
Output power RMS: 160W
Inputs: 4 x MIC/LINE balanced - 2 AUX (selectable) - 1x MAIN IN (normally connected to PRE OUT)
Input Sensitivity: MIC: -40dBV / 600 O balanced (with 48Vphantom) - LINE: 0dBV / 100 KO balanced - AUX: 0dBV / 47 KO unbalanced - MAIN IN: 0dBV / 10KO unbalanced
Signal Output: PRE OUT (normally connected to MAIN IN) - PRE OUT: 1V / 600 O - REC OUT: 1V / 600 O -BAL OUTPUT:1V / 600 O
Controls: MASTER VOLUME CONTROL -1 TREBLE TONE CONTROL -1 BASS TONE CONTROL - 4 MIC/LINE VOLUME CONTROLS -1 AUX VOLUME CONTROL
Loudspeakers outputs: 100/70V/4O
Frequency response: 80Hz -16KHz (-3dB)
Distortion (THD): < 0.5% (@ Pnom 1KHz)
S/N Ratio MIC: =70dB - LINE: =70dB - AUX: =80dB
Power Supply: autoswitch 100-240V~ 50/60Hz
Operating temperature: 0 -40°C
Input/Output Connectors: terminal block - RCA
Power Consumption: 160VA
Dimensions (LxHxP): 439 x 88 x 278 mm - 483 x 88 x 278 mm - 1U rack19''
Weight: 5.5 Kg
