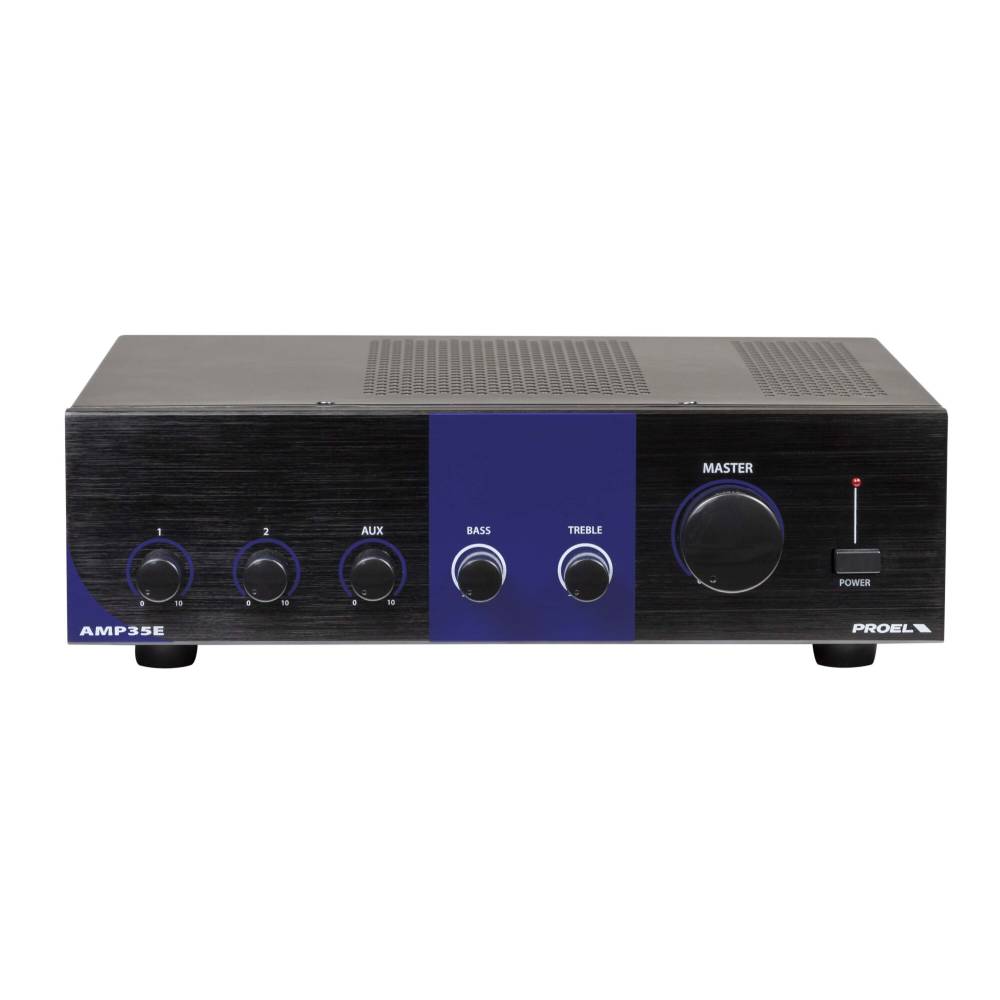

AMP35E and AMP60E are 35W or 60W professional mixer amplifiers with constant voltage (70/100V) or constant impedance (4/8O) output. This new series of power amplifiers has been conceived to fulfil the needs of a wide range of Commercial Audio installations in the most flexible and professional way. The new range responds to precise operating criteria and it has been designed and tested to guarantee maximum reliability in prolonged use
MAIN FUNCTIONS
• Speakers overload and short circuit protection circuit • Led start-up indicator
• Main level control (Master)
• Separated Level Controls for 1÷2 and AUX inputs
• Bass and Treble tone adjustment
• 2 MIC / MIC Phantom 48V / LINE inputs balanced on Euroblock terminals
• 1 AUX Line RCA Input
• MIC 1 Input with priority function
• 4 outputs, two at constant impedance (8/4O) and two at constant voltage (70/100V)
Output power RMS 35 W
Inputs 2 x MIC/PH/LINE (3.5mm EUROBLOCK) 1 x AUX (RCA L & R)
Input Sensitivity MIC: -50 dBv / 1 kO balanced PH: as above with 24V phantom supply
LINE: -10 dBv / 100 kO balanced AUX: -10 dBv / 47 kO unbalanced
Controls MASTER VOLUME CONTROL 1
TREBLE TONE CONTROL 1
BASS TONE CONTROL 2
MIC/LINE VOLUME CONTROLS 1
AUX VOLUME CONTROL 1
PRIORITY on MIC/LINE 1
Tone Controls Shelving +/- 10 dB @ 10 kHz
Shelving +/- 10 dB @ 100 Hz
Loudspeakers outputs 100/70V/8O/4O
Output Connector 5.08 mm EUROBLOCK
Frequency response 60Hz -20KHz (-3dB)
Distortion (THD) < 0.5% (@ Pnom 1KHz) S/N
Ratio MIC: =70dB
LINE: =70dB AUX: =80dB
Operating temperature 0 ÷ +45°C
Power Supply 100-120V~ 50/60Hz (select 115V) or 220-240V~ 50/60Hz (select 230V)
Power Consumption 72 W
Dimensions (LxHxP) 289 x 91 x 232 mm
Weight 4.3 Kg
