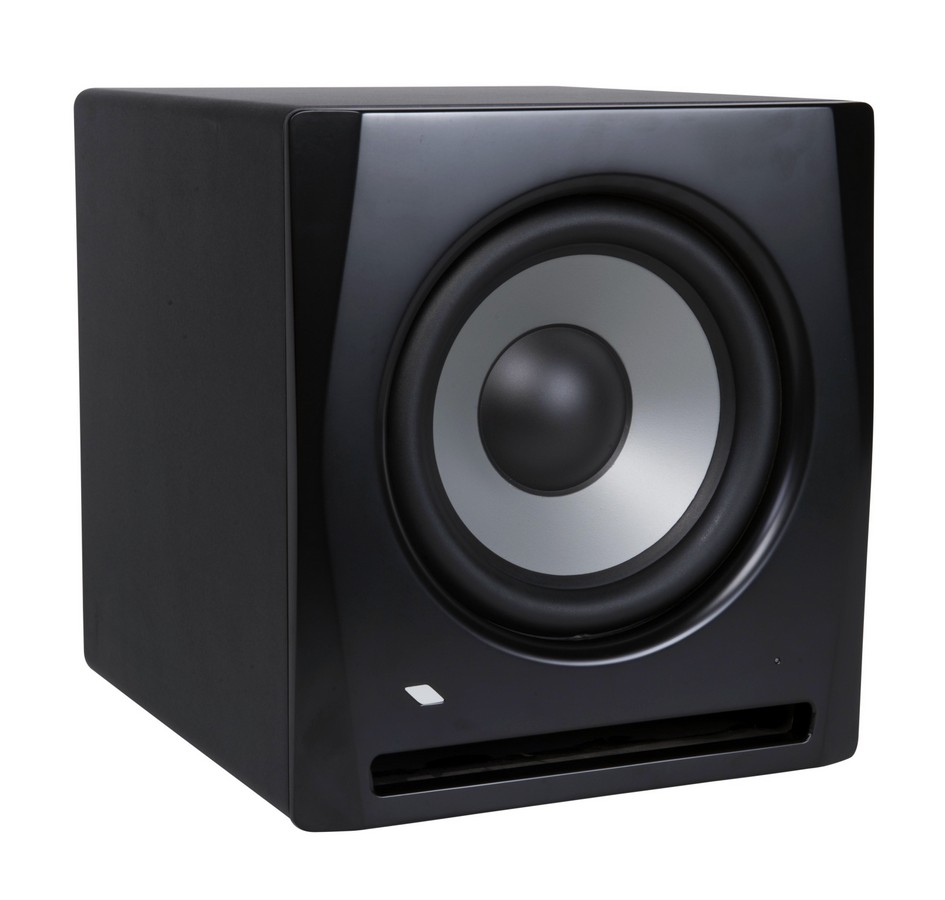

Proel Powered Studio Monitor Sub Woofer

• Active vented sub-woofer
• Long excursion 10" woofer with PP cone featuring very extended response
• Precisely calculated front tuning port for greater low frequency extension
• Stereo balanced inputs, outputs and link connectors for MONO and STEREO operation
• Optimized crossover design with HI-CUT and LO-CUT frequency control
• High headroom Class AB 150W amplifier with accurate CLIP LIMITER
• SPL MAX 110 dB
• Frequency response 40 Hz - 150 Hz

TECHNICAL SPECIFICATIONS

System type Vented sub-woofer
Low Frequency Device 10” woofer with PP cone
LF Amplifier Continuous Power 150W Class AB
Processing Analog
Frequency Response 40 Hz - 150 Hz
Max SPL 110 dB
Connectors 1/4” JACK, XLR-F (stereo INPUT), XLR-M (stereo OUTPUT), XLR-M (LINK)
Controls LEVEL, HI-CUT & LO-CUT frequency selector, PHASE
Construction Vinyl laminated MDF cabinet with MDF front
Cabinet Colour Black
Power Supply 230 VAC
Dimensions (W x H x D) 330 x 365 x 365 mm
Weight 15.3 kg
