**SOLD AS EACH**

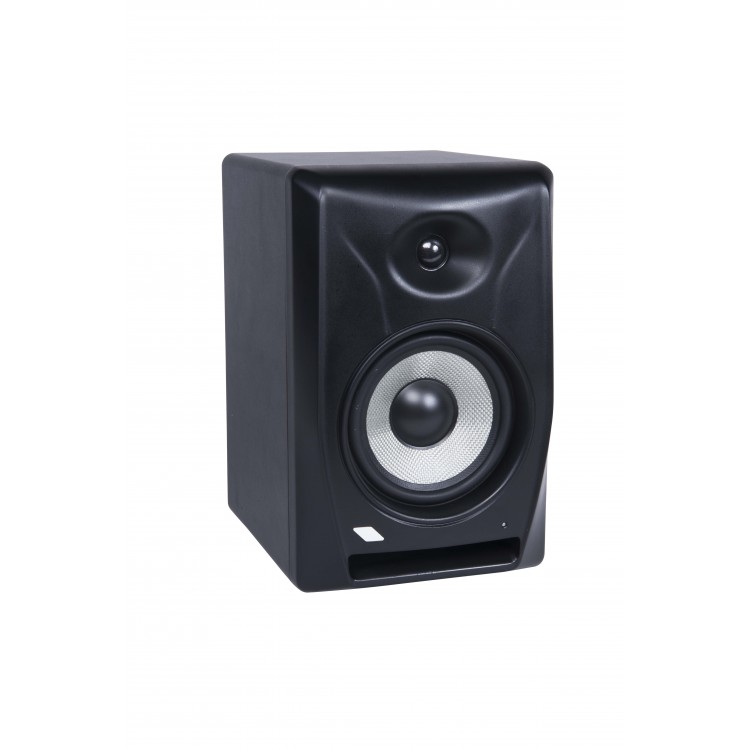

EK NF is the ideal nearfield monitor solution for any kind of music production applications. From the carefully selected transducers to the proprietary enhanced waveguides and to the low resonance cabinet design, everything has been tailored to offer the best accuracy over the whole audio spectrum.
The perfectly optimized electronics, including high headroom separate Class AB amplifiers for high and low section, high precision crossover networks and separate LIMITER circuits, provide maximum resolution and minimum listening fatigue.
0.75 “soft-dome tweeter for detailed response and a high-resolution sound
Proprietary integrated elliptical waveguide with accurate directivity control
Long-excursion 5.25” woofer with lightweight fiber-glass composite cone
Precisely calculated front tuning port for greater low-frequency extension
Multiple audio input connectors for connecting any kind of source
HF adjustment for a flexible control of high frequency
Sophisticated, carefully designed crossover filters an improved resolution
High-headroom Class AB 25+45W amplifiers with dual accurate CLIP LIMITER
System type 2-way vented enclosure
High Frequency Device 0.75 “ dome tweeter on elliptical waveguide
Low Frequency Device 5.25” woofer with fiberglass reinforced cone
Angular Coverage 90° H x 60° V
HF Amplifier Continuous Power 25W Class AB
LF Amplifier Continuous Power 45W Class AB
Processing Analog
Frequency Response 55 Hz - 20 kHz
Max SPL 104 dB
Connectors 1/4” JACK, XLR-F, RCA
Controls LEVEL, HF ADJUST
Construction Vinyl laminated MDF cabinet with ABS front
Cabinet Colour Black
Power Supply 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
Dimensions (W x H x D) 185 x 285 x 230 mm
Weight 5 kg
