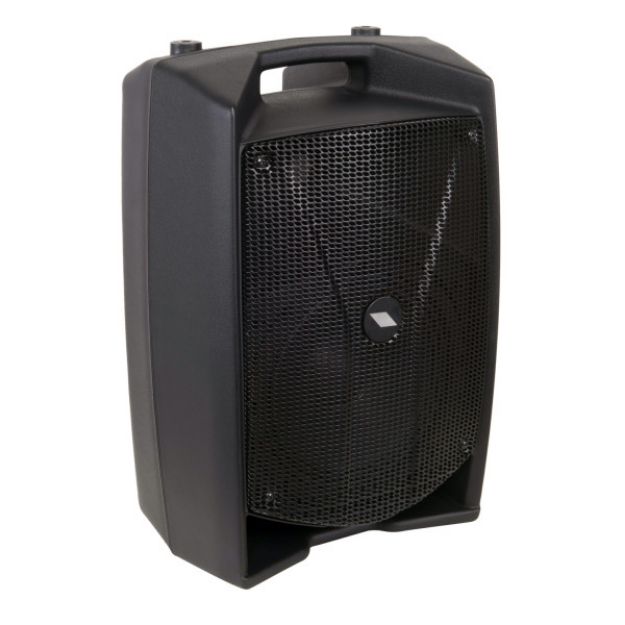

V PLUS series is the evolution of the acclaimed V series of PROEL powered loudspeakers delivering absolute value in terms of performance, engineering and design at a more affordable cost
These ultra portable speakers combine, in carefully engineered and light weight cabinets, the clearest and most accurate PROEL sound with Class D amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price point
V8PLUS features an extremely efficient amplifier module capable of delivering 400 W of robust power to the transducers. Thanks to the use of SMPS technology, this power comes in an ultra lightweight package, making the V PLUS models the most portable PROEL speakers ever. The power module is hosted in a fully sealed aluminium box, which provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling
Thanks to the carefully selected speakers and to the sophisticated active electronics, including dual CLIP LIMITERS for an undistorted sound even at the loudest level, the sound of the V8PLUS has been precisely tuned in every details, in order to provide unheard performance in this price range
The V8PLUS cabinet, expression of the most advanced Italian design, includes a super comfortable luggage style top handle for an effortless portability. The slanted shape allows the speaker to be laid on its side and used also as stage monitor
The 2 way biamped loudspeaker system
1” NEODYMIUM compression driver
Constant coverage 90° x 60° horn
High excursion 8” woofer with 1.5” VC
400 W Class D power amplifier with SMPS
Integrated active processor with dual LIMITER circuit
MIC/LINE input with 2 band EQ
Front LED with ON or SIGNAL/CLIP selection
SPL MAX: 121 dB
Frequency response: 70 Hz – 20 kHz
Ultra lightweight reinforced polypropylene cabinet
Top handle for effortless transport
Slanted shape for the use as a stage monitor
Four M8 flying points
7 kg total weight
Dimensions:34.00cm x 32.00cm x 50.00cm • Lightweight, compact and ultra-durable PP cabinet
• Ergonomic aluminum handle for effortless transportation
• Slanted symmetrical shape for the use as a stage monitor
• Four M8 flying points
System type 2-way vented enclosure
High Frequency Device 1’’ compression driver with 1” voice coil
Low Frequency Device 8 woofer with 1.5 VC
Angular Coverage 90° H x 60° V
Total Peak Power 600 W
HF Amplifier Continuous Power 50 W Class D
LF Amplifier Continuous Power 250 W Class D
Power Supply SMPS
Processing CORE LT digital processor
Frequency Response 65 Hz - 20 kHz
Max SPL 122 dB
Connectors IN: Combo, XLR F MIX OUT: XLR M
Controls MIC LEVEL, LINE LEVEL, DSP MODE, GND LIFT
Weight 9.0 kg (19.8 lb)
Floor Monitor Angle 42°
Flying System 4 x M8 - top/bottom
Cabinet Material Polypropylene
Handles 1 x top aluminum
Mounting Pole 1 x bottom
Dimensions (W x H x D) 270 x 422 x 250 mm
