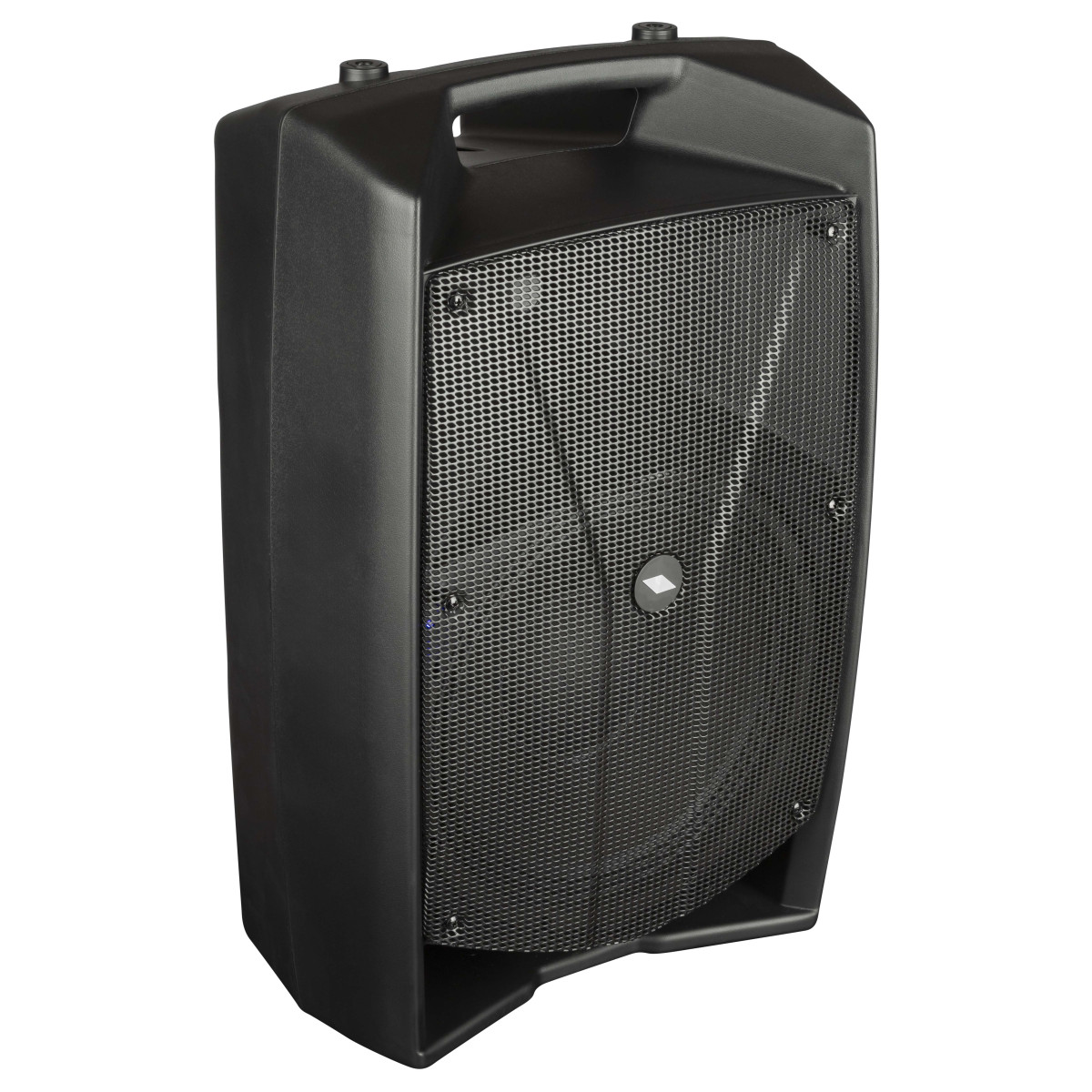

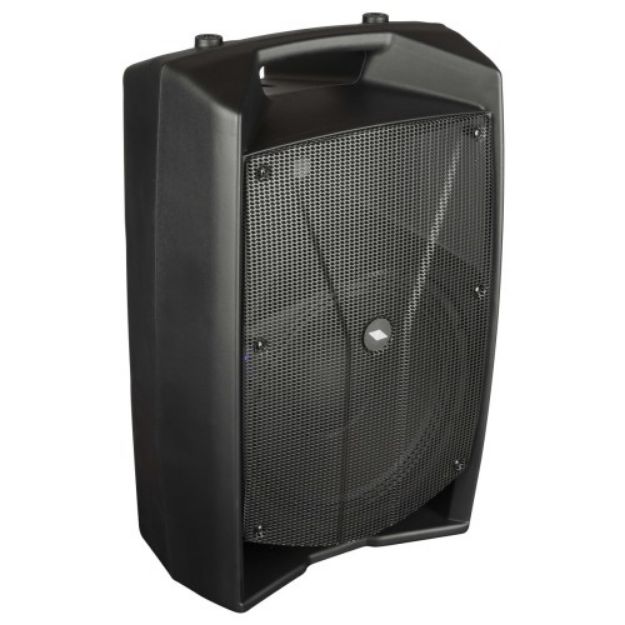

2 way amplified speaker with DSP
The V PRO Series is the latest evolution of the acclaimed PROEL V Series of loudspeakers. 5 different presets allows to adapt the system response to different applications with a simple fingertip touch. These ultra portable speakers combine, in carefully designed and lightweight cabinets, the clearest and most defined PROEL sound with Class D amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price.
Thanks to the MIC/LINE input and the WIRELESS USB input for using PROEL U24 microphone systems, the V PRO speakers can be used in a variety of applications without external equipment
System type 2 way vented enclosure
High Frequency Device 1'' neodymium compression driver
Low Frequency Device 12” woofer with 2.5"VC
Angular Coverage 90° H x 60° V
Total peak power 600W
HF Amplifier Cont. Power 50W Class AB
LF Amplifier Cont. Power 250W Class D
Power Supply Type SMPS
Frequency Response 50Hz – 20kHz
Processing DSP
Presets MUSIC, LIVE, DJ, MONITOR, SPEECH
Max SPL at 1m (peak) 124dBspl
Crossover Frequency 2000 Hz
Input Impedance 30 kohm balanced / 15 kohm unbalanced
Input Sensitivity LINE: +4dBu / MIC: -30dBu
Controls MIC/LINE, DSP VOICING, LEVEL
Connectors MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
Power Supply 220-240 V~ or 100-120 V~ 50/60 Hz with voltage selector
Rated Consumption* 300W
Construction Polypropylene
Cabinet Colour Black
Flying System 4 x M10 top/bottom
Handles 1 x top
Mounting Pole 1 x bottom
Monitor taper 44°
Weight 12.8 Kg
Dimensions (W x H x D) 380 x 600 x 328 mm Input Sensitivity LINE: +4dBu / MIC: -30dBu
Controls MIC/LINE, DSP VOICING, LEVEL
Connectors MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
Power Supply 220-240 V~ or 100-120 V~ 50/60 Hz with voltage selector
Rated Consumption* 300W
Construction Polypropylene
Cabinet Colour Black
Flying System 4 x M10 top/bottom
Handles 1 x top
Mounting Pole 1 x bottom
Monitor taper 44°
Weight 12.8 Kg
Dimensions (W x H x D) 380 x 600 x 328 mm
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program. program.
