PROEL introduces the S Series, a new range of compact and powerful sub woofers designed to complement PROEL full range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.
The cabinets are built with 15/18mm plywood and finished with extra durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).

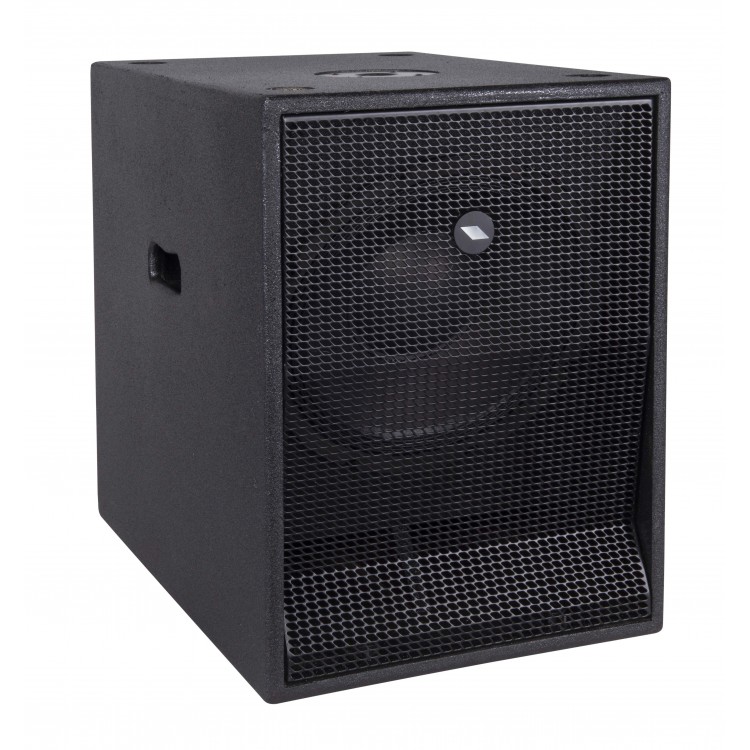

Compact active HBP sub woofer
12” woofer with 3” VC for a deep and extended response
1200 W peak power
STEREO input, link and output
SPL MAX 128 dB
Frequency response 43 Hz - 160 Hz
System type Hybrid Band Pass subwoofer
Loudspeaker 12" woofer with 3" VC
Amplifier Continuous Power 600 W
Frequency Response 43 Hz - 160 Hz
Max SPL 127dB
Connectors IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
LINK: 2 x NEUTRIK XLR-M
Controls Volume, GND lift
X-over Frequency, Phase
Power Supply 230 VAC or 120 VAC 50/60 Hz
Weight 19 kg
Cabinet 15/18 mm plywood
Black anti scratch paint
1.5 mm metal grille
2 handles
1 x pole socket
Dimensions (W x H x D) 360x500x520 mm
