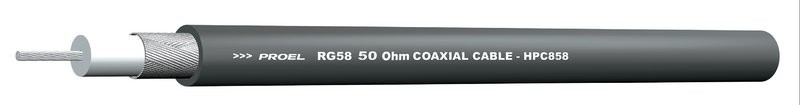

Coaxial audio/video single shielded cable with total tinned copper inner conductor to offer impedance stability (50 Ohm) and therefore a contained RL (Return Loss). The shielding is made of tinned copper braid confering a high shielding capacity to the cable, both at high and low frequencies; moreover, the braid makes a sort of sling, protecting the cable against possible stretchings during the installation. The overall jacket is made of PVC. The HPC858 cable is especially recommended for RF signals distribution.
Priced and sold by the Metre
TECHNICAL SPECIFICATIONS
Application fields: RF signals / Ethernet signals / TV device interconnections / BNC and RCA connections
Conductors: Tinned copper 21 AWG = 19 x 0.18 mm (0.41 mm²)
Insulation: PE ø 2.95 mm ± 0.05 mm
Shield: Tinned copper braid 95%
Jacket: PVC ø 5.00 mm
Colour: Black
Electrical resistance : 38 Ohm/Km (conductor) @ 20°C 14 Ohm/Km (shield) @ 20°C
Electrical capacitance: 97 pF/m (conductor/conductor) @ 1 KHz
Nominal impedance: 50 Ohm
Attenuation:
100 MHz = 14.70 dB/100 m
200 MHz = 20.8 dB/100 m
1000 MHz = 570 dB/100 m
Velocity of Propagation 66 %
Operating temperature -20°C/+80°C
Weight 40 Kg/Km
Minimum bending radius 30 mm
Packaging 100 m reel
