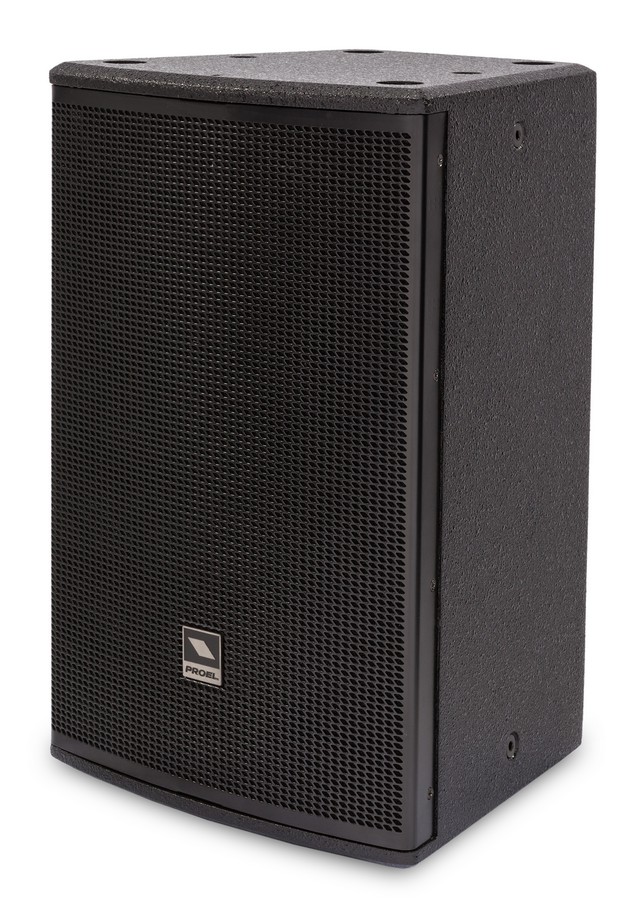

The new LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.
1” compression driver with 1” VC on a constant coverage 90° x 60° horn
10” woofer with 2” VC
600 W peak power
50 W continuous class AB amplifier for the high frequencies
250 W continuous class D amplifier for the low frequencies
Switch Mode Power Supply (SMPS)
LINE/MIC input
SPL MAX 123 dB
Frequency response 60 Hz - 20 kHz
Lightweight plywood cabinet
1 rear handle
4 x M10 flying points
Technical Specifications
System type: 2-way vented enclosure
High Frequency Device: 1” compression driver with 1" VC
Low Frequency Device: 10” woofer with 2” voice coil
Angular Coverage: 90° H x 60° V
Total peak power: 600 W
HF Amplifier Continuous Power: 50 W Class AB
LF Amplifier Continuous Power: 250 W Class D
Power Supply: SMPS
Processing: Analog
Frequency Response: 60 Hz - 20 kHz
Max SPL: 123
Connectors: IN: COMBO, LINK: XLR M
Controls: LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector
Flying System: 4 x M10 top/bottom
Construction: Plywood
Cabinet Colour: Black
Handles: 1 x rear
Mounting Pole: 1 x bottom, dual angle
Power Supply: 230v
Dimensions (W x H x D): 340 x 515 x 310 mm
Weight: 12.5 kg Weight: 12.5 kg
