System type: 2 way vented enclosure
High Frequency Device: 1” compression driver with 1.35" VC
Low Frequency Device: 12” woofer with 2.5” voice coil
Angular Coverage: 90° H x 60° V
Power Rating Continuous: 300 W
Power Rating Peak: 600 W
Impedance: 8 ohm
Frequency Response: 50 Hz - 20 kHz
SPL (1w / 1m): 96
Connectors: 2 x SPEAKON
Flying System: 4 x M10 top/bottom, 3 x M5 rear
Construction: Plywood
Cabinet Colour: Black
Handles: 2 x sides
Mounting Pole: 1 x bottom, dual angle
Dimensions (W x H x D): 380 x 595 x 360 mm
Weight: 15.5 kg

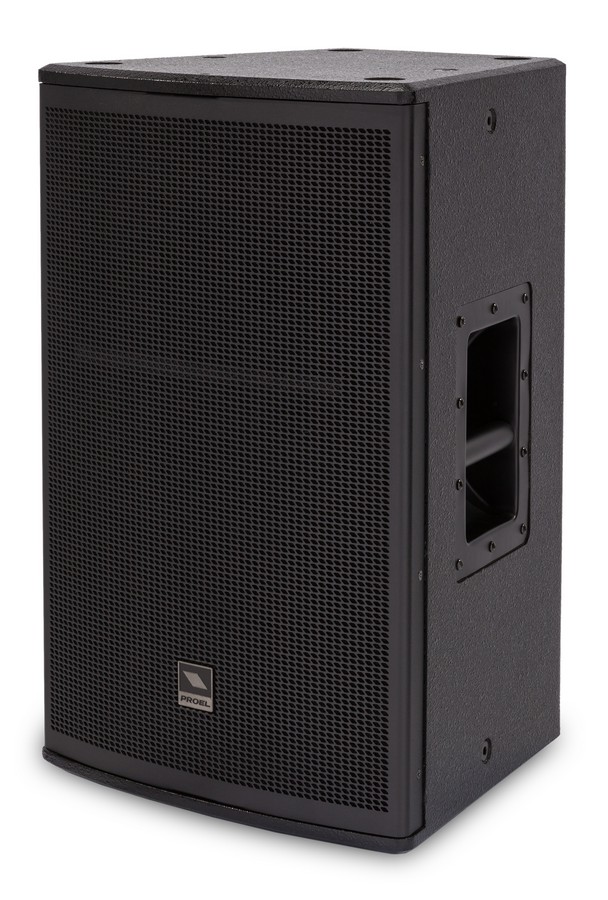

The new LITE Series by PROEL is a range of active and passive speaker systems with plywood cabinet offering a high level performance in a reliable and affordable package. Plywood, a very lightweight and durable material makes moving and installing these speakers very quick and easy. Strong, anti scratch paint and steel grilles with an internal foam layer provide proper protection for years of service. The dual angle pole holder offers the possibility to obtain a more uniform coverage of the audience. For the high frequency reproduction of LITE Series we have designed wide dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight bass.
•1” compression driver with 1.35” VC on a constant coverage 90° x 60° horn
•12” woofer with 2.5” VC
•300W continuous power rating
•Frequency response 50 Hz - 20 kHz
•Lightweight plywood cabinet
•2 metal handles
•4 x M10 flying points
•Available in BLACK Connectors: 2 x SPEAKON
Flying System: 4 x M10 top/bottom, 3 x M5 rear
Construction: Plywood
Cabinet Colour: Black
Handles: 2 x sides
Mounting Pole: 1 x bottom, dual angle
Dimensions (W x H x D): 380 x 595 x 360 mm
Weight: 15.5 kg / 34.2 lbs.
