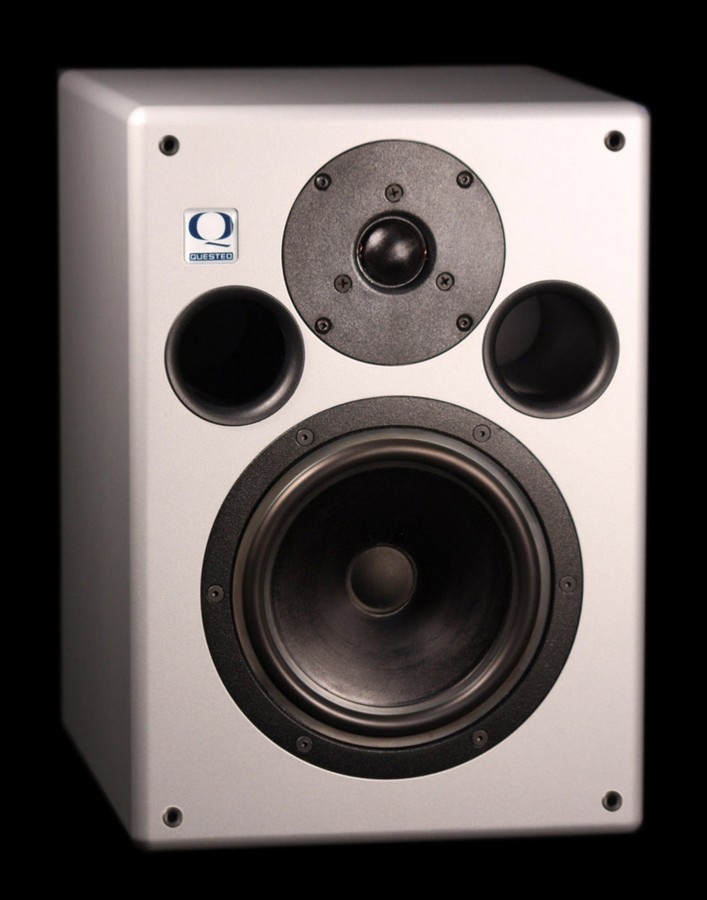

Sound On Sound Review The Quested S7R offers two class A-B amplifiers capable of delivering a total of 190 Watts RMS matched to an enclosure tuned with a double flared port designed to minimise any possible low frequency 'chuffing'. The result is an extremely powerful, neutral, articulate and accurate compact monitor, perfect for a wide range of music styles from acoustic jazz to house.
The frequency response is more than adequate for most applications, it can however be extended down to 25Hz when coupled to the SB10R sub-woofer. The S7R is fully magnetically shielded, so can be used in close proximity to CRT monitors.
All S-Series monitors are phase coherent with each other enabling them to be used in combination in multi-channel systems.
Some typical applications include components in multi-channel systems, postproduction, project studios, location recording, and mastering.
Specifications
• Size (WxHxD): 244 x 347 x 308 mm
• Weight: 11.7 kgs
• Bass Driver: 1 x 165 mm (6 1/2 inch)
• High Frequency Driver: 1 x 28 mm (1 inch)
• Frequency Response: 65 Hz-20 kHz ± 2 dB
• Input Connector: XLR and 1/4 inch Jack combo socket
• Impedance: 10k electronically balanced with RF filters
• Subsonic Filter: -3 dB @ 30 Hz, 24 dB/oct
• Ultrasonic: -3 dB @ 75kHz, 4 dB/oct
• Crossover: 1k19
• LF EQ: -2/-4 @ 65 Hz
• HF EQ: +/- 2 dB @ 10 kHz
Power amplifiers
• LF output power > 120W RMS
• HF output power > 70W RMS
