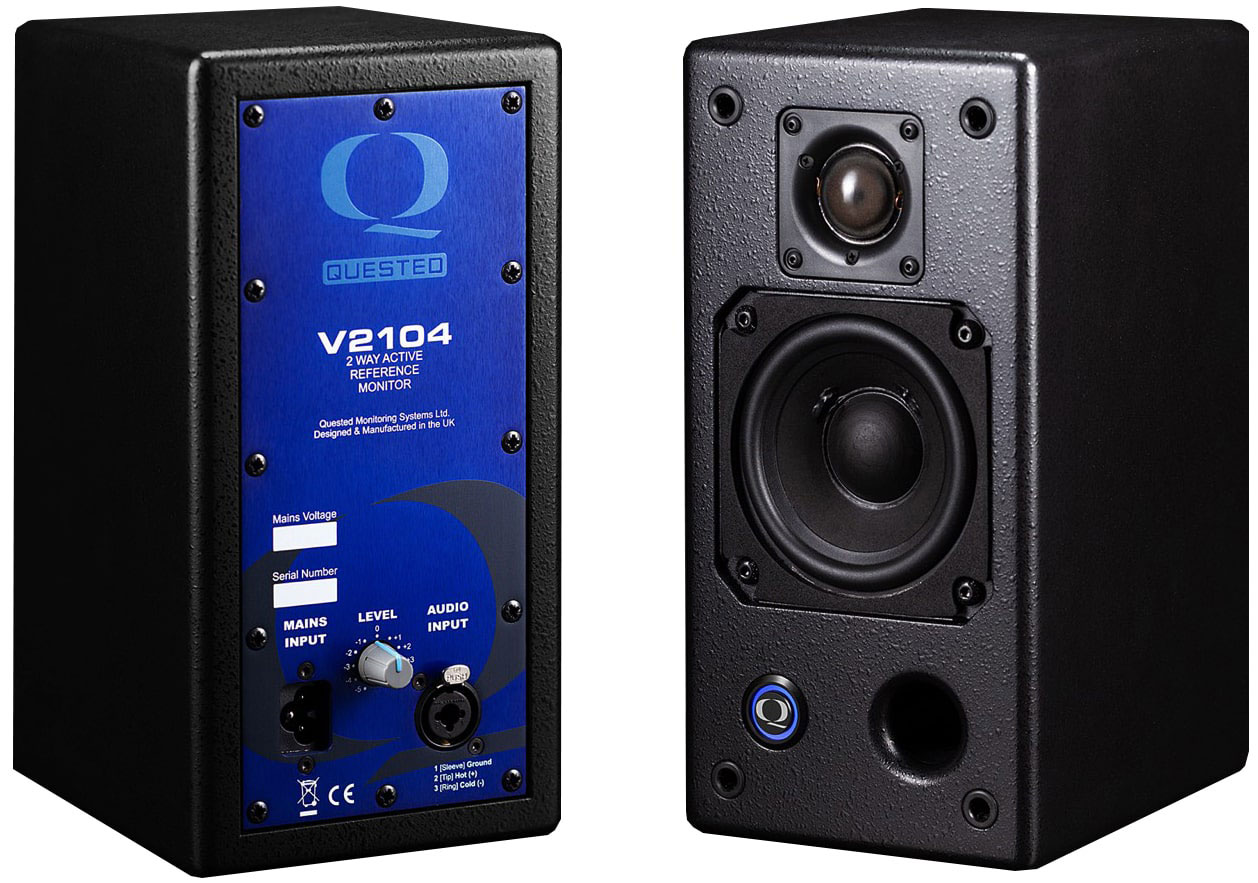

The V2104 is the latest model in Quested’s V-Series range of active, powered, monitors. The compact, ported, direct radiator design utilises a 4”/100mm paper cone bass driver and a 28mm /1 1/8th” soft dome high frequency unit. Power is derived from a 2 channel class D module, chosen primarily for its sonic performance and also for its compact dimensions keeping the cabinet size to an absolute minimum. The diminutive size of the V2104 makes it the perfect choice for a portable monitor with the special edition MiniRedz version including a shoulder carry case. Low frequency performance can be seamlessly extended by using either our SB10 or QSB112 sub woofers depending on speaker configuration, stereo, 5.1 etc.
https://soundsystems.proel.com/en/prodotto/v10pro-2-way-acti ve-speaker-with-dsp/
TECHNICAL SPECIFICATION
Dimensions: 132(w) x 262(h) x 160(d) mm
Weight: 3.5kg
Drivers: Low Frequency 1 x 100mm(4") LF
High Frequency: soft dome – 1 x 28mm (1. 1/8")
Maximum SPL: 100 dB continuous pink noise @ 1m Leq 1 minute. 106 dB per pair continuous pink noise @ 1m Leq 1 minute
Frequency Response: 100 Hz – 19 kHz ± 2dB / 88 Hz -6 dB
INPUT
Connector: XLR and ¼ inch Jack combo socket
Impedance: 10k ohm Electronically balanced
Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold
Sensitivity: TBC
FILTERS
Protective lower filter : -3dB @ 45Hz, 24dB/oct
Protective upper filter : -3dB @30kHz, 24dB/oct
Crossover Point: 1k67H
INPUT
Connector: XLR and ¼ inch Jack combo socket
Impedance: 10k ohm Electronically balanced
Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold
Sensitivity: TBC
FILTERS
Protective lower filter : -3dB @ 45Hz, 24dB/oct
Protective upper filter : -3dB @30kHz, 24dB/oct
Crossover Point: 1k67H
