The three DR3 behaviors are Single Level & List of Toggles/Commands, List of Levels for either multizone volume control or input source mixing, and Single Level plus Selector. The LCD display has a backlight for readability that turns on when used, then dims after a short time period. The names are customizable in Halogen Software to anything you like.
The DR3 is extremely flexible, as it can control both selection and volume. You can think of the DR3 as two different remotes—a selector and a level. One knob makes a selection, the other knob changes the volume. Display screens are dynamic, automatically updating when the available options change through preset activation, room combining, and so on. Therefore, the user always sees the options that are currently available.
Halogen software lets you configure a DR3 in one of three ways:
Single Level & List of Toggles/Commands: This option allows you to control a single level and multiple other items. For example, you could use a DR3 to control the volume in a room as well as activate/deactivate one or more listed presets that change the audio and control parameters for the room.
List of Levels: Choose and adjust multiple levels. For example, you could use a DR3 to control the volume in multiple rooms or zones from a single DR located at a hostess station or in a manager's office.
Single Level & Selector: Control level and selection from the same remote. For example, you could use a DR3 to select the background music source and control the volume in a room.

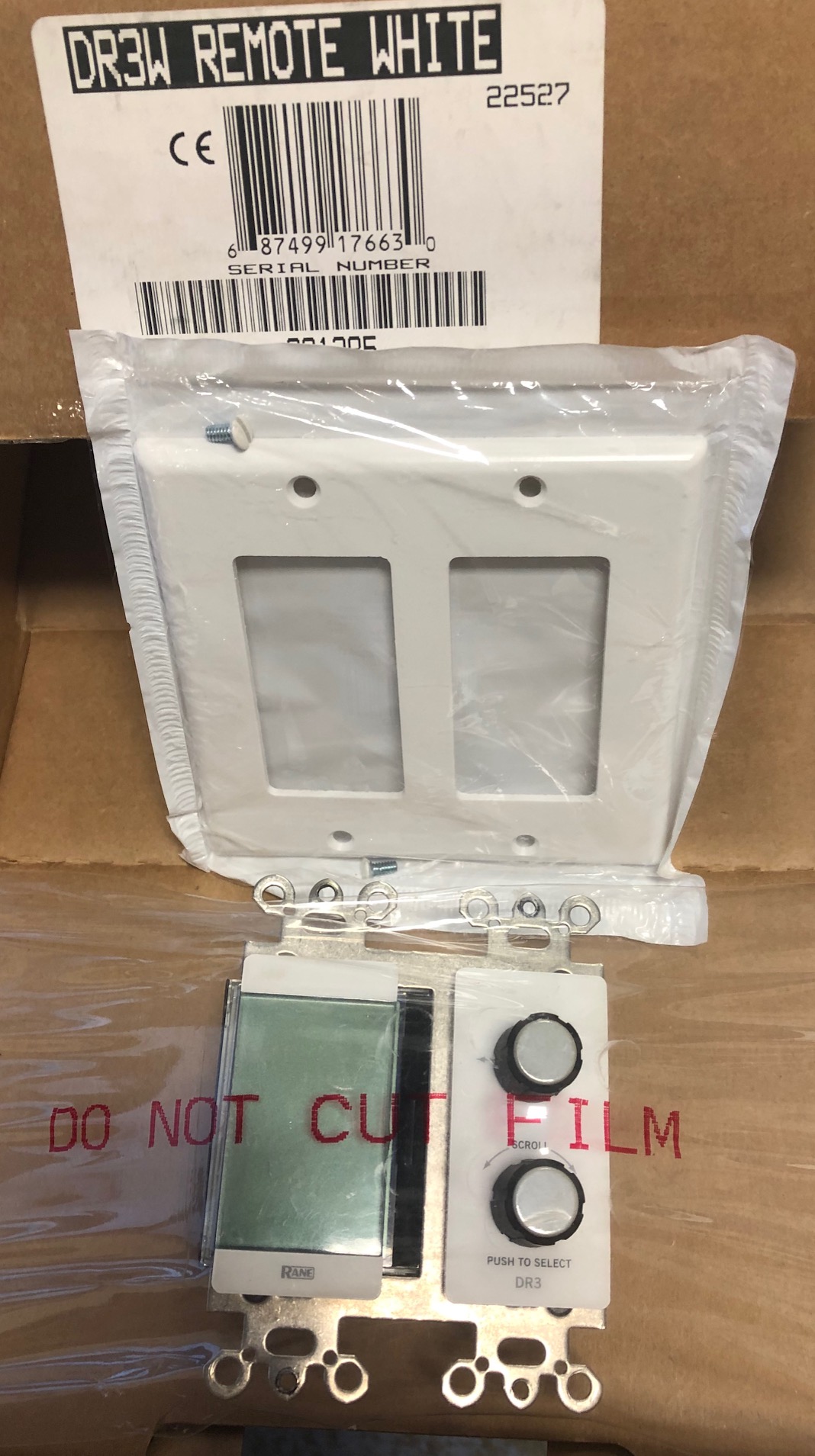

The DR3 fits in a standard double-wide U.S. electrical box and comes with a matching Decora plate cover.
Home run shielded CAT 5e connections to the HAL or EXP (up to 300 meters [1000 feet] away) eliminate addressing, external power, and the need to test the cables.
