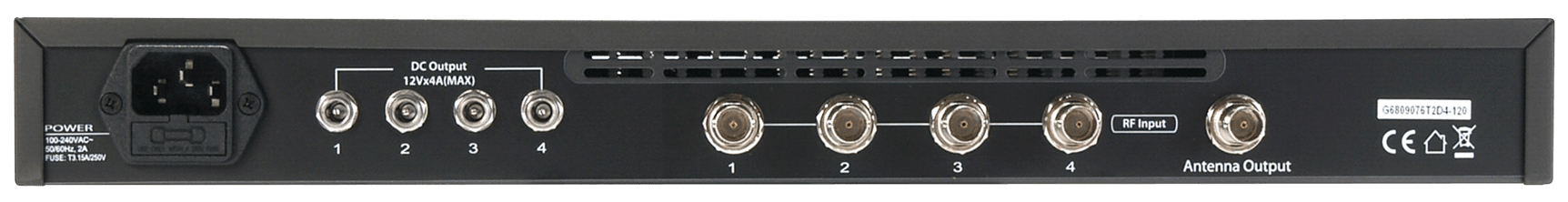

The COMBINE4 IEM transmitter combiner brings together up to four in ear monitor transmitter signals into a single transmitting antenna. IEM transmitter combination is important for multi channel systems to minimize intermodulation products arising from multiple adjacent transmitters interfering with one another. The COMBINE4 works with any brand IEM and any type of directional antenna operating in the 470-960 MHz range. It is equipped with four BNC transmitter inputs, front panel LED signal indicators for each input, and four DC output jacks that supply power to connected IEM transmitters. Includes one AC cable, four DC cables, and four BNC jumpers
Features
Broadband UHF operation (470-960 MHz range)
Combines the signals of up to four wireless in ear monitor transmitters into one antenna
Centralized power supply with ability to power four individual transmitters
Four BNC inputs for IEM transmitter signals
Front panel LED signal indicators for each input
Four DC output jacks that supply power to connected IEM transmitters
Includes one AC cable, four DC cables, and four BNC jumpers
Full rack width (1 RU)
Specifications
Operating frequency: 470 to 960 MHz
Full system gain: 0 dB (±2 dB)
Maximum RF input power: +20 dBm (100 mW)
LED indicator (input signal threshold): > +5 dBm
Power consumption: 60 W
Input AC voltage: 100-240V AC, 50/60 Hz, max 2A:
Output DC voltage (to receiver jacks): +12V, 1A max (4 outputs total 48 W)
Dimensions: 480 mm (18.90") W x 260 mm (10.24") D x 45 mm (1.77") H
Weight: 2.3 kg (5.1 lbs)
Accessories included: AC cable; DC cable (x 4), BNC jumper (x 4)
