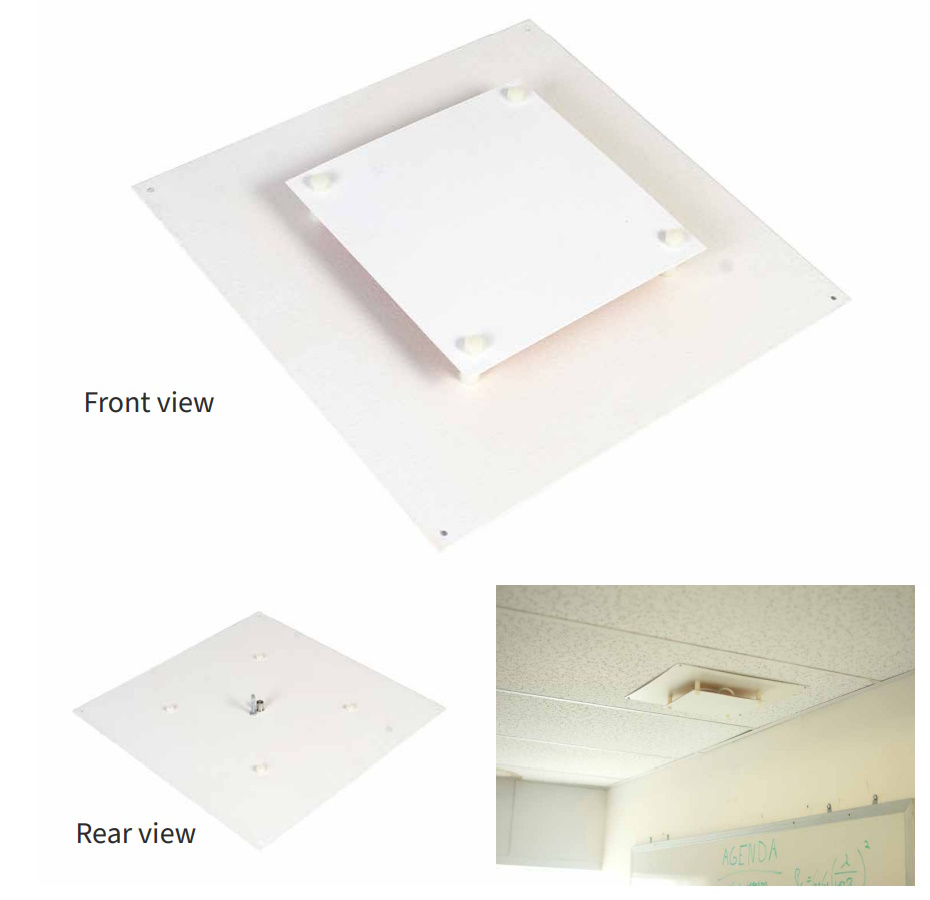

The CX-22 antenna is mounted in a low-profile, 14” X 14” form factor for ceiling installation. Popular in training facilities, classrooms, lecture-halls, houses of worship, and boardrooms, the CX-22 is an ideal tool for maximizing signal where aesthetic considerations make placement of traditional directional antennas impossible. It is also well suited for distributed antenna systems (DAS) in large facilities with drop-ceiling environments.
RF Venue
Electrical
Operating frequency .............................. 470-698 MHz
Bandwidth............................................... 228 MHz
Impedance .............................................. 50?
Average return loss ............................... -6.07 dB
Pattern type............................................ Flood
Gain........................................................ . 6 dBd
F/B ratio.................................................. N/A
F/S ratio .................................................. N/A
Polarization ............................................ Linear
Dimensions............................................. 355mmX355mm /
14” X 14”
Weight..................................................... 0.9 kg / 2 lbs
Mount location........................................ Ceiling tile
Operating temperature.......................... -10°C–40°C
Color ....................................................... White
Connector(s)........................................... BNC female
