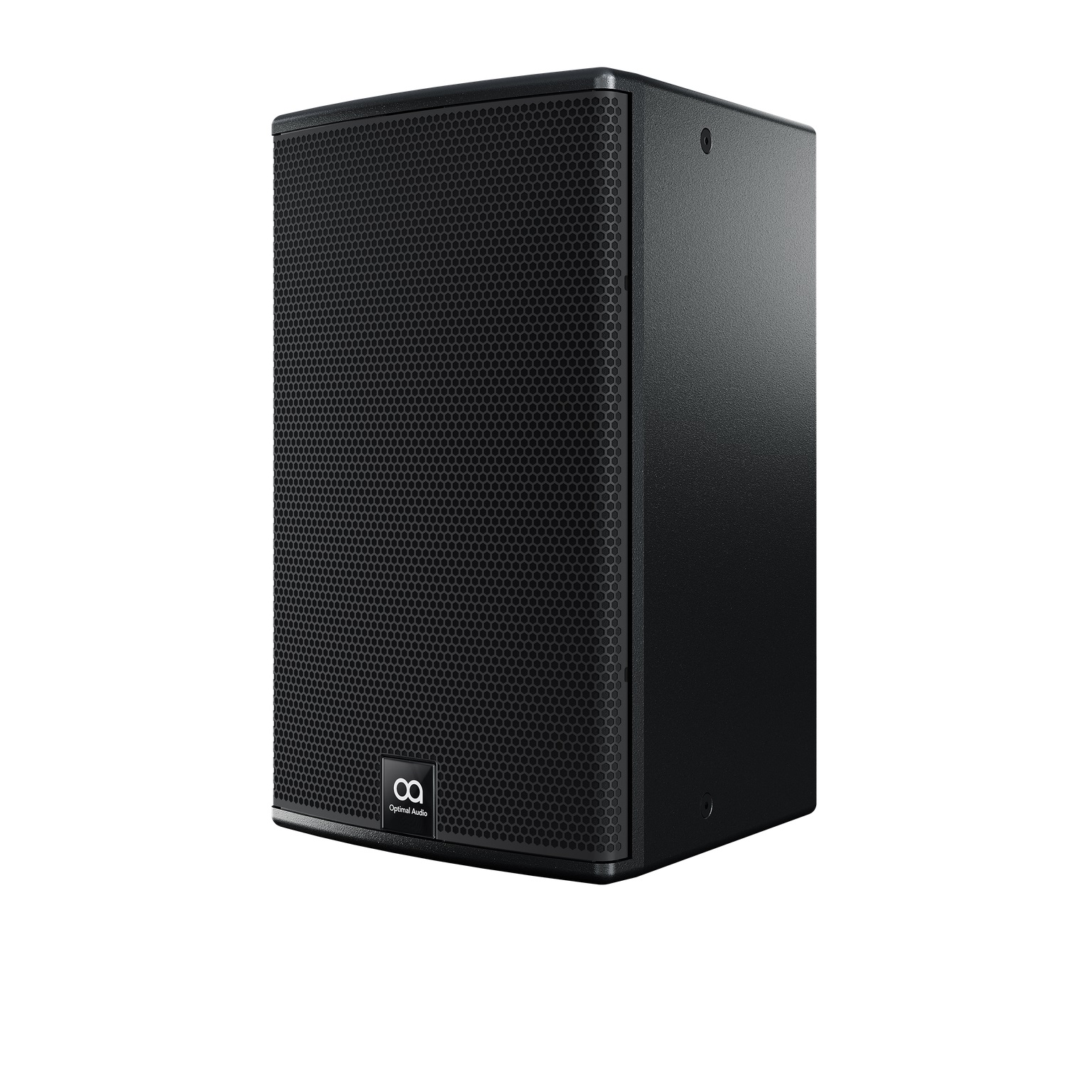

Cuboid 10 is a full range, two way, passive, 10” loudspeaker designed to outperform its compact size. For short to medium throw distances, it effortlessly delivers rich and detailed sound with punch and precision. With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 10 can be fixed in either portrait or landscape mode for a flexible, simple installation
Cuboid 10 features a 10” (250mm) low frequency (LF) driver for impressive bass and midband with a 1” (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user rotatable horn. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive
FEATURES
• Compact sized wooden cabinet
• Portrait or landscape mounting options
• Rotatable high-frequency horn
• 65Hz - 20kHz frequency response ±3dB
• Maximum SPL 120dB (continuous), 126dB (peak)
• 90° horizontal x 50° vertical coverage
SPECIFICATIONS
TYPE Two way, full range, passive loudspeaker
FREQUENCY RESPONSE (with preset) 65Hz - 20kHz ± 3dB -10dB @ 49Hz
DRIVERS LF: 10” (254mm), ferrite motor system HF: 1” (25mm) exit/1.4” (36mm) voice coil, polyimide dome compression driver
RATED POWER 250W (AES) 1000W (peak)
NOMINAL IMPEDANCE 8 Ohm
SENSITIVITY (1W/1m) 96dB
MAXIMUM SPL 120dB (cont), 126dB (peak)
RECOMMENDED AMP SmartAmp 30
CROSSOVER 2.8kHz passive
DISPERSION (-6dB) 90° H x 50° V (user rotatable)
ENCLOSURE Trapezoid wooden cabinet FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type PIN
CONNECTIONS (INPUT) 1+/1
FITTINGS 21 x M8, inset bolts
DIMENSIONS (W) 322mm x (H) 524mm x (D) 326mm (W) 12.68” x (H) 20.63” x (D) 12.83”
WEIGHT 16kg (35.27lbs)
ACCESSORIES (available separately) Wall Bracket B, U Bracket B, M8 Eye Bolt
RECOMMENDED SUB Sub 15
