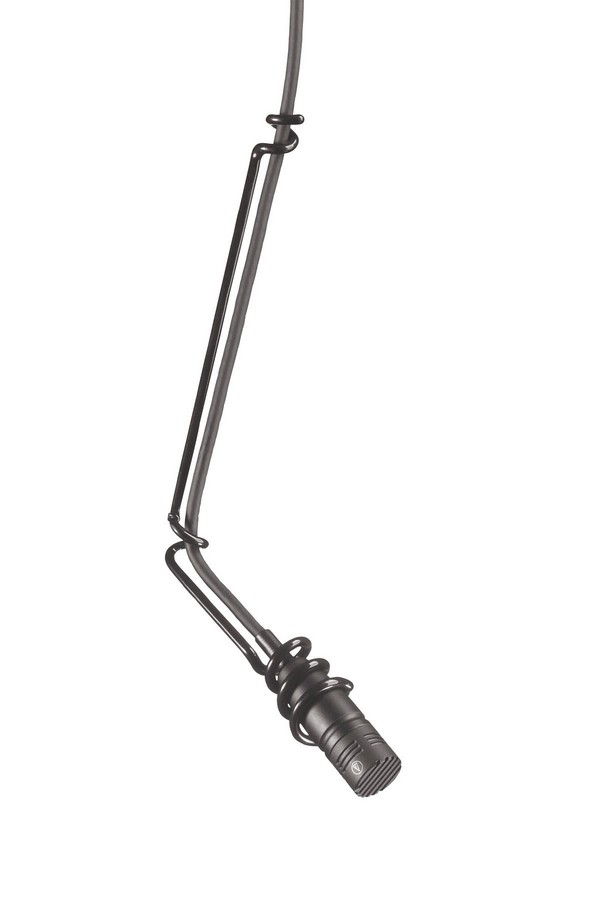

Perfect for speech, theater, orchestra and choir sound reinforcement and recording, the U853R cardioid condenser hanging microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. With a consistent cardioid polar pattern, the mic offers natural sound from any angle, and superior gain before feedback. It is phantom powered and features an integral 80 Hz low cut UniSteep® filter that reduces pickup of low frequency ambient noise. The microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns
Designed for suspension over choirs, instrumental groups and theater stages
Superior off axis rejection for maximum gain before feedback
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low frequency attenuation to improve sound pickup without affecting voice quality
Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
Low profile design with low reflectance finish for minimum visibility
Available in two colors: black (U853R) and white (U853RW)
ELEMENT Fixed charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLLOFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 139 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 115 dB, 1 kHz at Max SPL
SIGNAL TO NOISE RATIO 70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
SWITCH Flat, rolloff
WEIGHT (MICROPHONE) 14 g
WEIGHT (POWER MODULE) 81 g
DIMENSIONS (MICROPHONE) 34.0 mm long, 12.2 m diameter
DIMENSIONS (POWER MODULE) 92.9 mm long, 18.9 mm diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3 pin XLRM type
CABLE 7.6 m long (permanently attached to microphone), 3.2 mm diameter, 2 conductor shielded cable with TA3F type connector
ACCESSORIES FURNISHED AT8153 two stage foam windscreen; AT8451 steel hanger; AT8538 or AT8531 Phantom power Adaptor
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°)
OPTIONAL CLIP AT8438 5/8"-27 stand adapter
