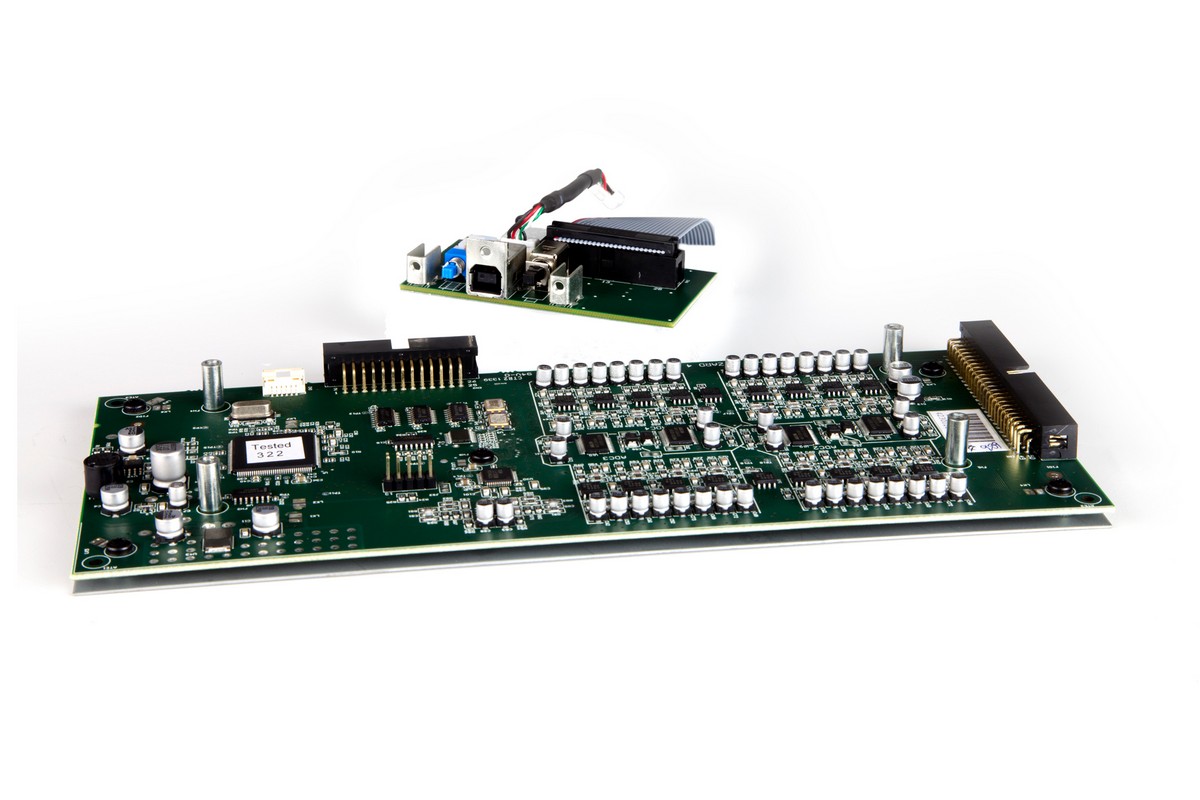

All MixWizard4 mixers can be fitted with an optional high quality audio card that will send 16 audio channels to a computer for recording or processing and a return stereo channel for monitoring or effects
The card neatly mounts within the rear pod of the WZ4 mixer and the data is available from a USB2 connector at the rear of the mixer. Switches on either side of the USB2 connector allow the users to change routing options
Please note that the option card must be installed by a technically qualified service engineer
Overview
The WZ4 range of mixers have the option of accommodating a high quality audio card that will send 16 audio channels to a computer for recording or processing and a return stereo channel for monitoring or effects. The card neatly mounts within the rear pod of the WZ4 mixer and the data is available from a USB2 connector at the rear of the mixer. There are 2 switches on either side of the USB2 connector which change routing options, these are described below. The option card must be installed by a technically qualified service engineer refer to the fitting instructions document AP8988 for further information on how the audio card is installed
Specification
The USB audio option module has selectable sample rates of 44.1kHz / 48kHz / 88.2kHz / 96kHz at 24 bit resolution.
The card has been tested with the following operating systems to ensure compatability:
Windows XP 32 & 64 bit
Windows Vista 32 & 64 bit
Windows 7 32 & 64 bit
Windows 8 32 & 64 bit
OS X 10.5 Leopard
OS X 10.6 Snow Leopard
OS X 10.7 Lion
OS X 10.8 Mountain lion
For questions about compatibility with other operating systems please contact our technical support team via the Allen & Heath website: http://www.allen-heath.com/support
This interface card has been tested with a variety of computers and operating systems.
With the higher sample rates (88.2 & 96 kHz) we recommend that you take some time to optimise your system latency settings to ensure that no clicks or dropouts are added to the recorded data.
For higher immunity against bandwidth related timing issues, we recommend operating at 44.1 or 48kHz sample rate. we recommend operating at 44.1 or 48kHz sample rate.
