Virtual DJ have now released updated maps on their website for the K2, 23c and 43c. The major benefit is these devices are now plug & play and automatically recognised by the software.
Allen & Heath XoneK2 is a compact, slim line universal MIDI controller incorporating a 4 channel soundcard, for use with any DJ software
With no fewer than 52 hardware controls providing up to 171 MIDI commands across 3 layers plus the ability to link multiple units using X:LINK, saving USB ports on your computer XoneK2 has the power and flexibility to put you in touch with the functions and features of your chosen software
Quick and simple mapping lets you create a unique layout that mirrors your style and puts the functions that matter at your fingertips, whilst 3 colour illuminating switches give at a glance feedback allowing you to work however you decide
The high quality internal soundcard provides flexible user setup options using the XoneK2 with headphones, headphones and a mix system or with an external mixer. XoneK2 comes packed in a black padded case as standard. The case doubles as a stand, bringing the K2 up to the same height as most pro DJ mixers
MIDI CONTROL

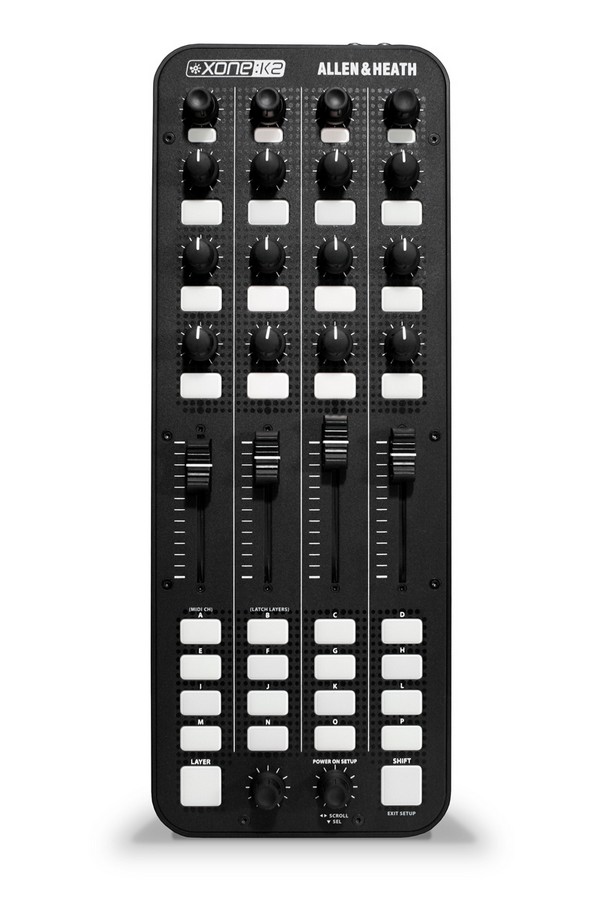

XoneK2 is a compact designed MIDI Controller for use with any DJ software such as Ableton, Virtual DJ, MixVibes, Mixx and Traktor Pro. XoneK2 can even be used to control lights or VJ software if it can receive MIDI data it can take commands from K2. What each control does is entirely up to you you can create a completely customised layout that perfectly fits the way you want to work. XoneK2 has 52 physical controls including 12 analogue and 6 endless rotary encoders with push switch, 4 linear faders, and 30 backlit performance switches providing up to 171 MIDI control commands across 3 layers. We also provide example maps to get you started out the box and information on how to set up your own
LATCHING LAYERS
A Latching Layers system lets you assign controls to multiple layers, so a single physical control can be given up to 3 functions. You can configure all, some or none of K2’s controls to be linked to the Latching Layers system. As a quick visual reminder, when toggling through layers all switches assigned to a particular layer will illuminate in the appropriate colour
AUDIO INTERFACE
XoneK2 has a high quality internal, four channel (2 stereo) 48kHz soundcard. Setup options include using the K2 with a pair of headphones, feeding a pair of headphones and a PA system, or connecting to an external DJ mixer
CONSTRUCTION
Its slim line chassis, soft touch controls and minimal looks set K2 apart from the pack. There’s plenty of substance too Xone:K2 is built to Allen & Heath’s renowned touring grade audio and build quality standards, including the use of steel nuts on all rotary controls to protect the circuitry from impact damage
CASE/STAND
XoneK2 comes packed in a black padded case as standard. As well as keeping it safe on the road, the case doubles as a stand, elevating the K2 up to the same height as most pro DJ mixers
X:LINK
Two or more K2s can be linked via our X:LINK protocol, expanding the control capability. X:LINK uses a standard RJ45 connector and distributes power and data, allowing connection to X:LINK compatible devices, including Xone:DB4 and DB2, to expand MIDI data without using additional USB ports
