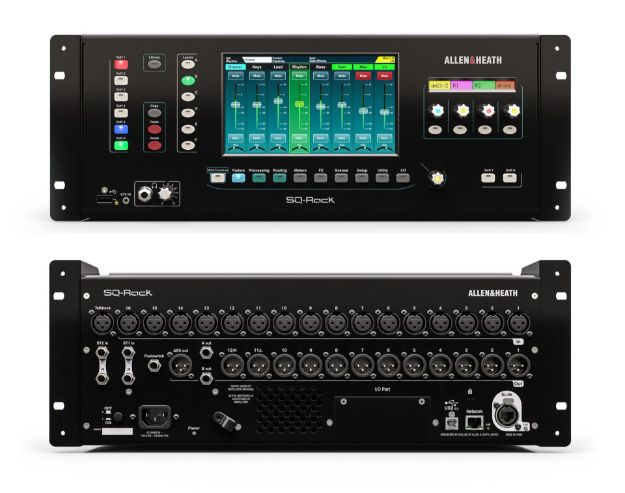

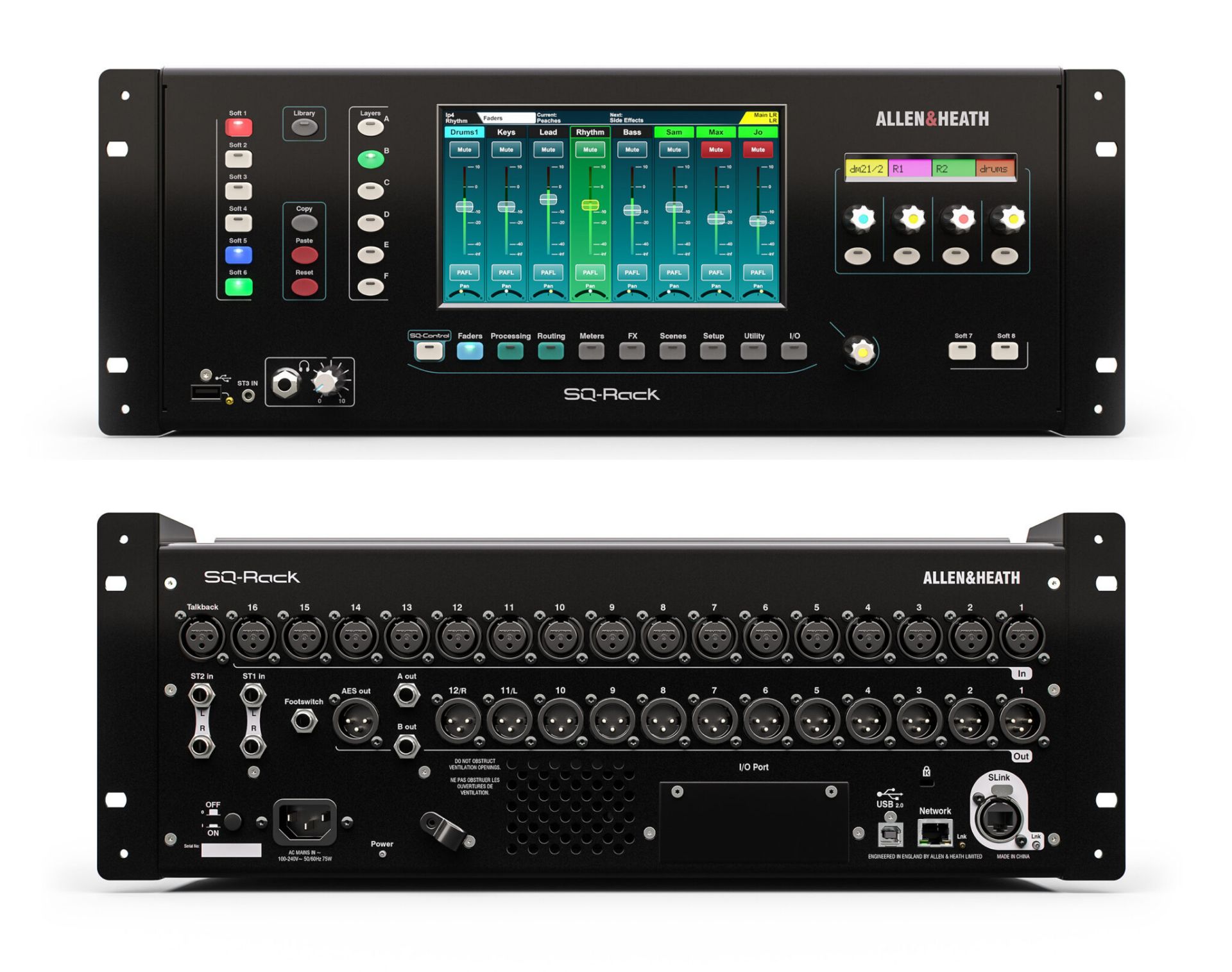

SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack mountable design. Perfectly crafted to meet the demands of live sound and installation environments, SQ-Rack combines power, flexibility, and intuitive control in one versatile solution
Features
19” Rack Mountable (4U)
Audio and Processing:
96kHz XCVI FPGA processing
48 input channels
12 stereo mixes + LR
3 stereo matrix (split to 6 mono)
8 stereo FX engines + dedicated stereo returns
DEEP processing ready
Onboard I/O:
16+1 built-in mic preamps
3 stereo line inputs
12 XLR line outputs
2 TRS line outputs
AES output
Control:
7” capacitive touchscreen
8 assignable SoftKeys
4 assignable soft rotaries
SQ-MixPad app
SQ-Control app
SQ4You app
Expandability and Integration:
SLink port for remote audio / expansion
64×64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)
Recording and Streaming:
SQ-Drive direct recording to USB
32×32 96kHz USB interface
