Designed to help integrate dLive into a wide range of live, install and broadcast scenarios, the Dante 64×64 audio networking card offers low latency, high channel count connectivity to Dante networks and devices using standard networking cabling and hardware.
With 64 channels of bidirectional audio at 96kHz, the Dante 64×64 card is suitable for high channel digital splits between systems, for instance FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately), with no compromise in audio quality.

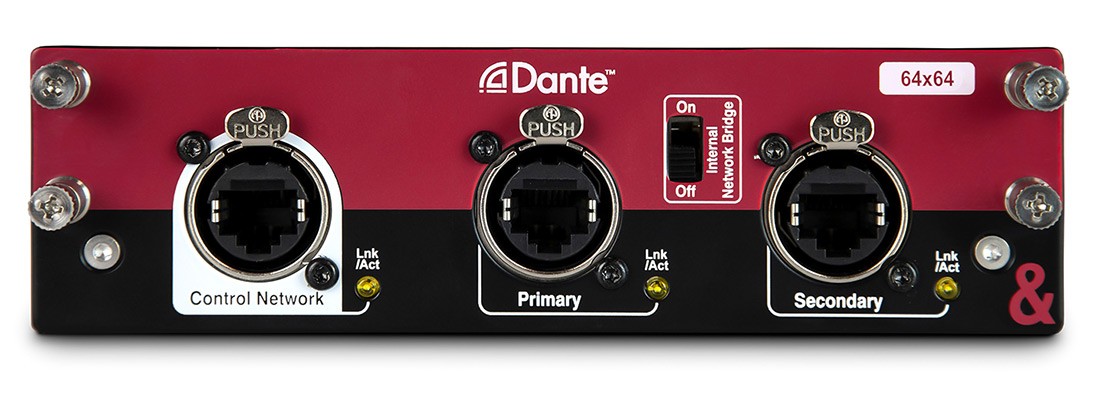

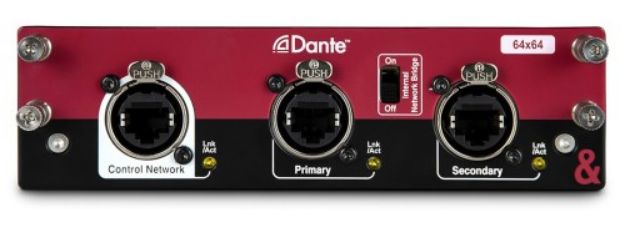

The front panel Primary and Secondary ports allow simultaneous connection to multiple Dante devices, or dual cable redundancy with compatible hardware. A dedicated Control Network port is provided for configuration using Dante Controller software.
Support for the AES67 standard allows interoperability with other AoIP protocols found in broadcast, install and live sound scenarios and simplifies audio transport between different systems.
Compatibility with Dante Domain Manager (DDM) enables integration with large networks and transparent routing across subnets as well as robust security and authentication options.
Features
64 bidirectional channels of Dante I/O at 96kHz or 48kHz
Primary and Secondary audio ports for redundancy or switched operation
Dedicated Control Network port for configuration
Internal Network Bridge switch to bridge the dLive Control Network and the Dante Control Network
AES67 compatible
Dante Domain Manager (DDM) ready
Up to 5 x superDANTE w/ dLive S Class / Up to 2 x superDANTE w/ dLive C Class
Plug and play operation
Use off the shelf network hardware
