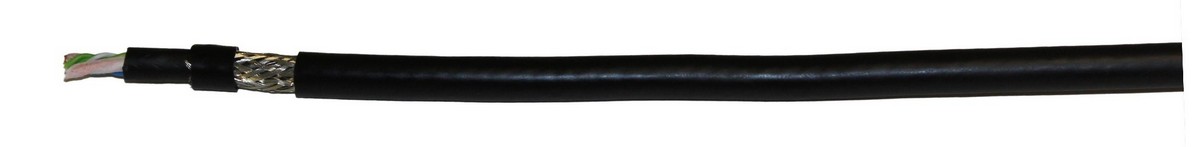

Professional network cable Cat6 S-UTP 4 x 2 x AWG23/1, with pairs twisted together around a unique inner filler to maintain electrical characteristics. Featuring braided copper shield between two jackets. Ideal for mobile use applications. Polyurethane Outer jacket
TECHNICAL SPECIFICATIONS
Application fields: Patch cords and link cables for Ethernet connections
Conductors: 23 AWG - Solid bare copper wires - 0.57mm approx
Insulation: Polyolefin dielectric - 0 1,00 mm approx
1st Shield: Mylar overlapping foil 100%
Jacket: Black PVC compound - Ø 6.2 mm approax
2nd Shield: Tinned copper braid coverage 80%
Outer Jacket: Polyurethane compound Ø 8.0 mm approax
Colour: Matt Black
Electrical resistance: 70 Ohm/Km (conductor) @ 20°C
Electrical capacitance: 76 pF/mt (cond./cond.) @1 KHz
Operating temperature: -40°C/+80°C
Weight: 86 Kg/Km
Minimum bending radius: 10 mm x overall diameter
