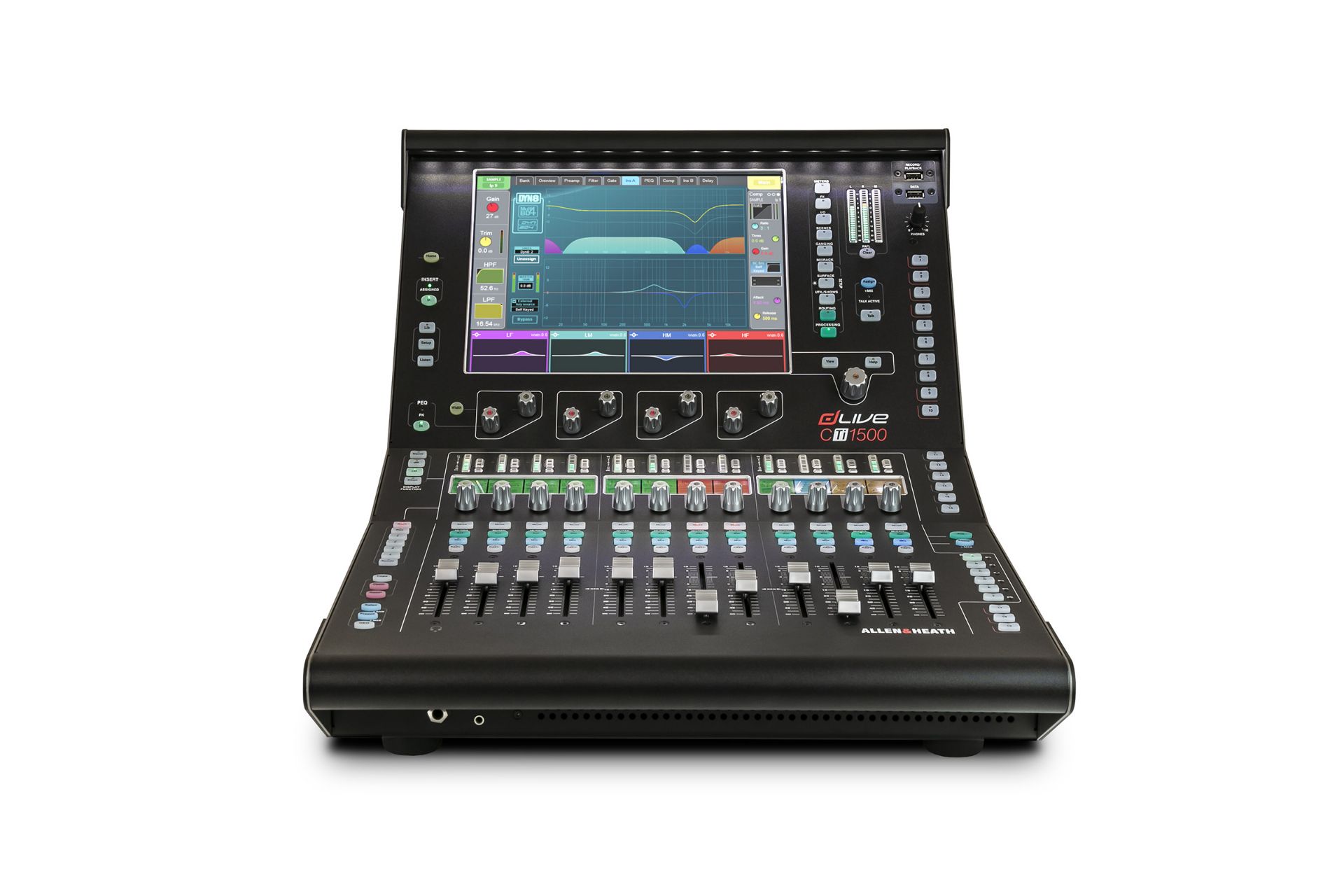

dLive CTi1500 takes our best selling compact dLive C1500 control surface and applies ‘superleggera’ Italian performance car principles to set a new standard for lightweight control surfaces.
CTi1500 has been engineered across the board to ruthlessly strip out as much weight as possible, while ensuring tour grade structural integrity and a first class user experience
Compact Touring. Re engineered
Since its launch, C1500 has become a firm favourite in compact touring, particularly for fly dates, bus tours, support slots – in fact any applications where size and weight need to be carefully balanced against audio requirements
CTi1500 takes this no compromise compact concept even further. Our engineering team embarked on a year long project to create the ultimate super lightweight control surface
On the outside, the side trims have been replaced by Titanium panels, lightweight, super strong and a first in touring mixer design. The rear and base panels have also been cleverly re engineered to cut the weight but retain strength
Internally the weight loss continues, with new alloy metalwork throughout
Crucially, the front panel remains largely the same as a C1500, providing the familiar dLive feel, but redesigned to replace the armrest with sleek steel curves
Every change was carefully considered and rigorously tested to meet the high standards required of any Allen & Heath touring product
Titanium side panels and lightweight alloy metalwork
Weighs just 11.5kg
12 faders
Fully assignable layout – 72 fader strips
Harmony UI integrates screen and wrap around controls
12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n' drop
Dedicated multi mode EQ view
Configurable widget areas for Scenes, meters, FX and more
19 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility
USB stereo recording and playback
6 XLR mic/line in, 6 XLR line out
1 digital st AES3 in, 1 digital st AES3 out
Connection hub
GigaACE gigabit link to MixRack
DX link for I/O expansion
I/O Port – 128 ch 96 kHz
2 x Network ports
Wordclock BNC I/O
Video output 2 x Network ports
Wordclock BNC I/O
Video output
C1500
Height 325mm
Length 665mm
Width 485mm 19"
Weight 18kg
