dLive S7000 overview on Youtube System
Distributed system with separate MixRack and Surface – mix and match any combination
DX32 modular expansion racks for flexible I/O
DEEP processing – powerful embedded plugins including GEQ and compressor modelling
Pro touring grade construction
Redundant hot swappable power supply common across the range
Redundant connections throughout
Up to 814 system inputs and 824 outputs
Up to 5 audio networking option cards including Dante, Waves SG, ACE, MADI
Compatible with ME personal mixing system
dLive MixRacks
Choice of 3 sizes (32, 48 or 64 mic inputs)
XCVI 160x64 FPGA core
96kHz sample rate
Variable bit-depth for ultimate precision and noise performance
Virtually infinite mix headroom thanks to 96bit accumulator
Class leading, ultra-low latency < 0.6ms
128 Input Channels with full processing
64 Mix Outputs with full processing
Configurable 64 bus architecture (group, FX, aux, matrix, mains)
LR, LCR and up to 5.1 mains mode
16 RackFX with dedicated stereo returns
Multiple PFLs
24 DCAs
Built-in signal generator, RTA and spectrogram
New preamp design for extra transparency
Unique Active PAD circuit for consistent performance with any source
Connection hub
Dual redundant GigaACE gigabit link to Surface
2 x redundant DX links for I/O expansion
3 x I/O Ports – 128 ch 96 kHz each
Dedicated ME-1 48kHz port
2 x Network ports
Wordclock BNC I/O
Dual redundant, hot swappable power supply
Flush front panel with ultra quiet fan
Reversible rack ears design

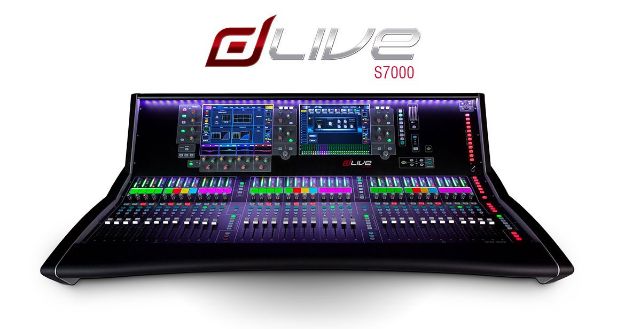

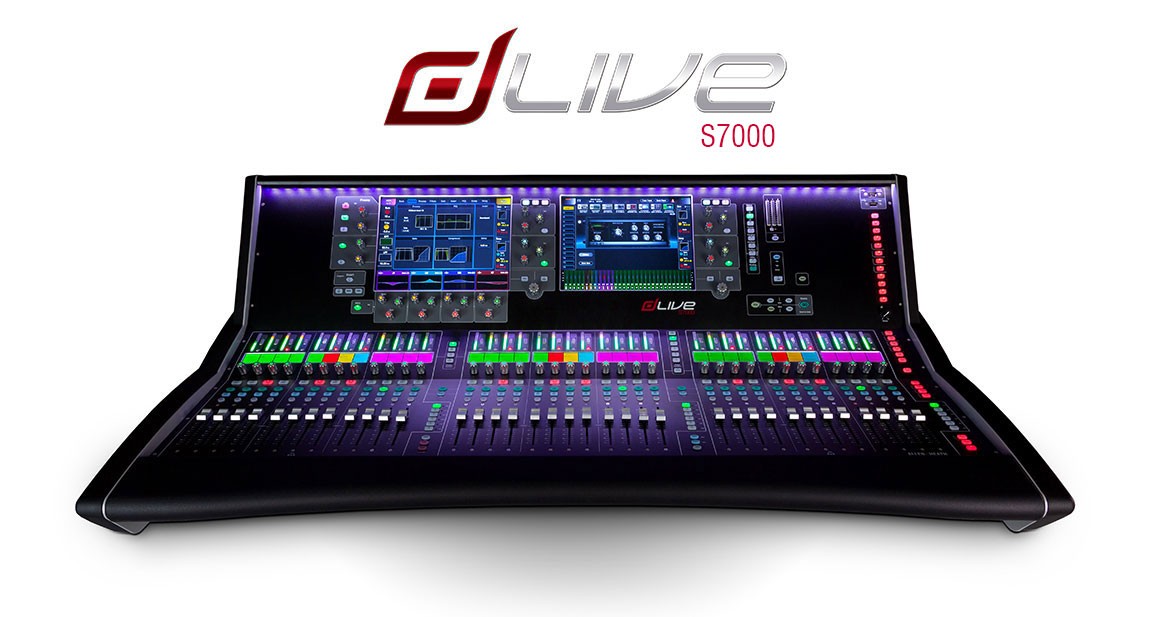

dLive S7000 Surface
Choice of 3 sizes 36 faders
Fully assignable layout – up to 216 fader strips
Harmony UI integrates screen and wrap-around controls
Twin 12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view
Configurable widget areas for Scenes, meters, FX and more
3 pages of 6 assignable rotaries per screen
26 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility
USB stereo recording and playback
8 XLR mic/line in, 8 XLR line out
2 digital st AES3 in, 3 digital st AES3 out
Connection hub
Dual redundant GigaACE gigabit link to MixRack
1 x redundant DX link for I/O expansion
2 x I/O Ports – 128 ch 96 kHz each
2 x Network ports
Wordclock BNC I/O
Video output
Dual redundant, hot swappable power supply
Control
Networked wired or wireless control
Editor software for online or offline PC/Mac editing
dLive MixPad and OneMix apps
IP range of PoE remote controllers
TCP/IP protocol for third party integration
Extensive User Permissions and Profiles
Comprehensive Scene management with Cue List, multiple Scene Update, Crossfades, Recall Filters, Embedded Recalls, Auto Store, Recall Undo
dLIVE S7000 - without box Width - 1325mm Depth - 728.5mm Height - 413mm Weight - 41kg Allen & Heath reserves the right to alter any information supplied in this document or any other document supplied hereafter. E&OE.
dLIVE S3000 - without box Width - 870mm Depth - 728.5mm Height - 413mm Weight - 28kg Height - 413mm Weight - 41kg
In box 900x570x1500
