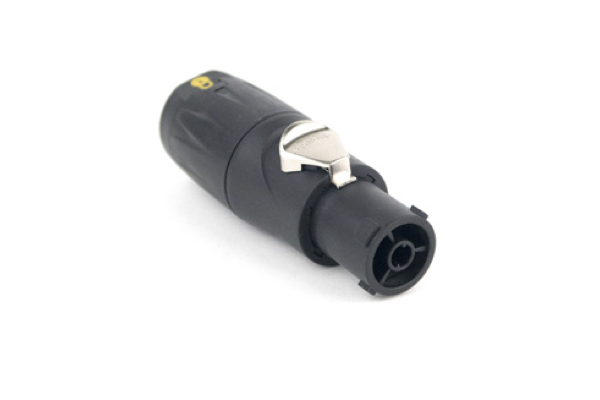

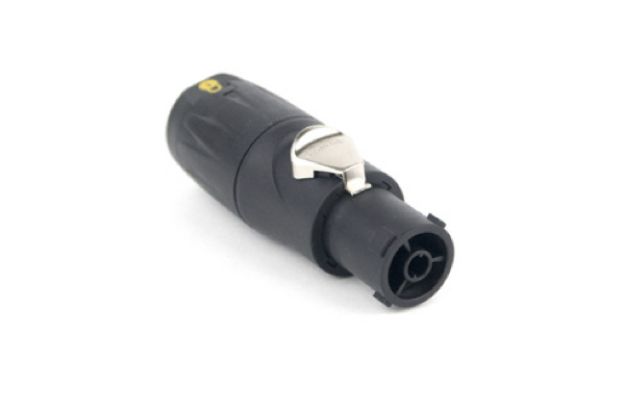

HPT Series connectors are suitable for AC power supply where a durable latch locking connector is required. They are rated at 16A, 250 Vac. HPT Series connectors can be connected or disconnected under load and are IP65 rated.
Features:
• 2+PE contact layout
• Quick release, vibration resistant latch lockable
• High impact UV resistant material
• True Mains Connector with Current Breaking Capacity (CBC)
• 16A current rating (20A USA)
• Industry standard mating interface
• IP65 rated
• US. Patents (10,186,804)(D839,193)(B840,341)
• UL498 certified
• UL50E enclosure type 4 (when mated or in combination with protective caps)
