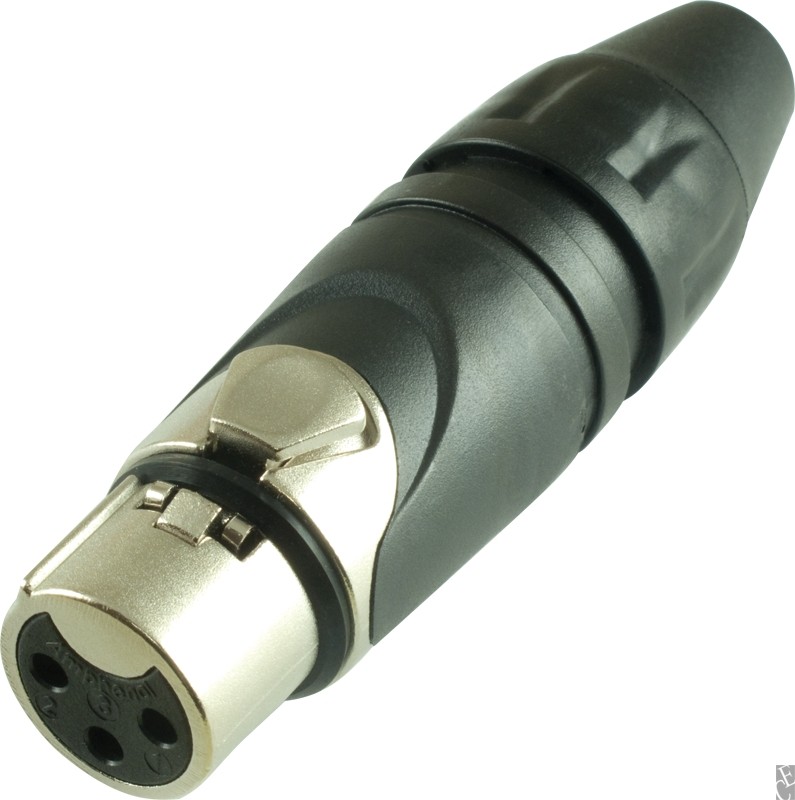

Features
Unique Australian designed shell and housing
One piece ground / latch spring design incorporating twin wipe contacts for a direct connection path from mating shell to ground providing enhanced connection and EMI performance
Ergonomic sleeve design for improved grip
Channel I.D capability with coloured sleeves
Oversized ergonomic latch for quick and easy mating
Leading first mate last break pin 1 on socket connectors
Chuck style cable clamp to suit 3mm – 8mm cable O.D. with integrated split to allow inclusion after soldering
Concealed latching point for improved aesthetics, sealing and strength
Overmolded boot with flex bend relief for improved aesthetics, cable protection and boot retention
Concentric socket contact design provides optimal contact resistance
Precision machined pin contacts as standard
Compact solder buckets to reduce termination time and material wastage during the soldering process
Zinc diecast shell housing for robustness and wear with Satin nickel or Black finish
Available in 3,4 and 5 contact arrangements Available in 3,4 and 5 contact arrangements
