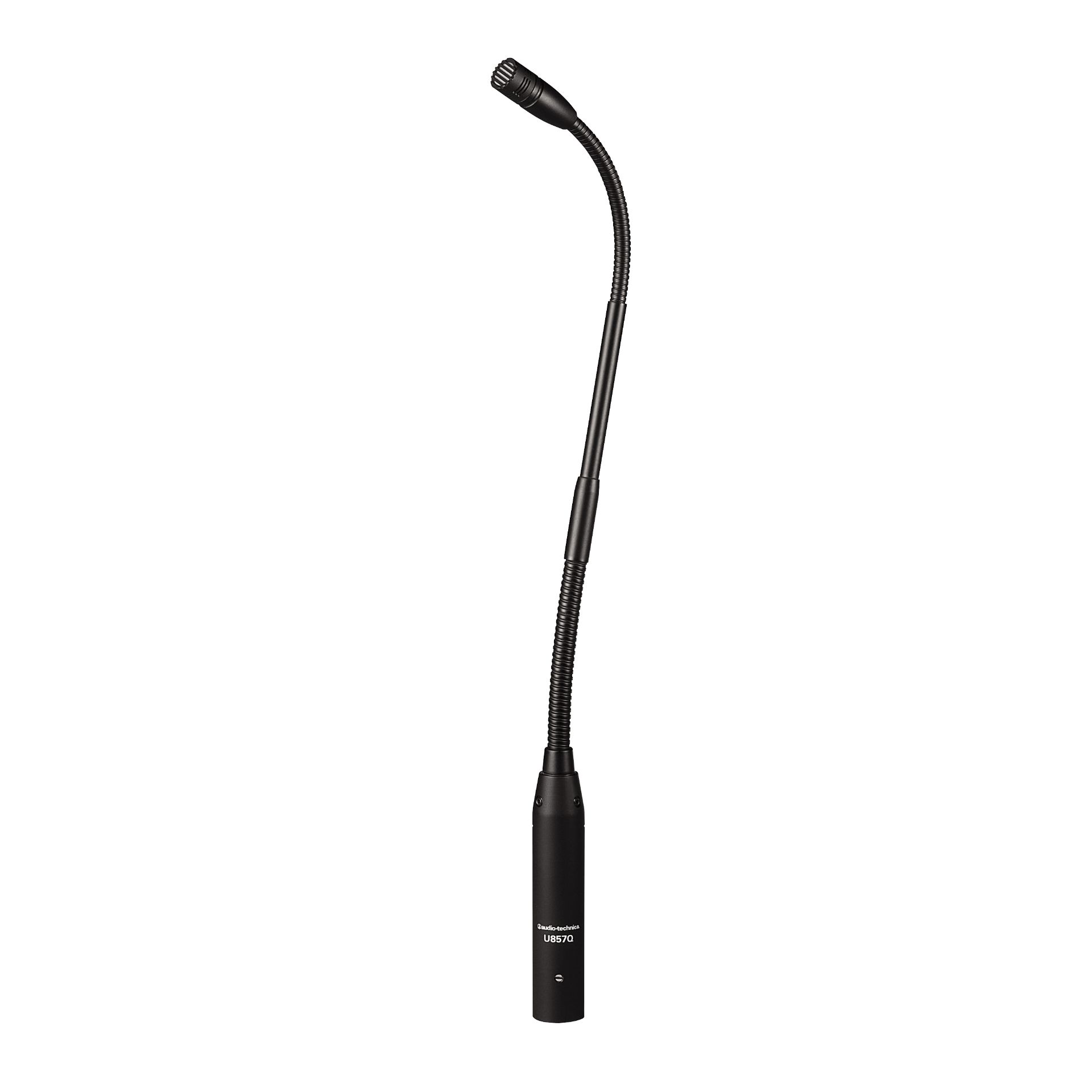

Ideal for conference centers, boardrooms, courtrooms, houses of worship, and other installed applications, the U857Q is designed to plug directly into a panel or desk mounted XLRF type connector. This cardioid condenser quick mount gooseneck microphone offers unsurpassed immunity from radio frequency interference thanks to Audio-Technica’s UniGuard® innovations. The 365mm long microphone features an ultra flexible small diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. Equipped with self contained electronics, the phantom powered microphone also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low frequency ambient noise.
Features:
- Designed for high-quality sound reinforcement, professional recording and broadcasting
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
- UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Self-contained electronics eliminate need for external power module
- Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
- Two stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
- Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
ELEMENT Fixed charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 139 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 115 dB, 1 kHz at Max SPL
SIGNAL TO NOISE RATIO 70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
SWITCH Flat, roll off
WEIGHT 144 g
DIMENSIONS 365.0 mm long, 12.2 mm head diameter, 18.9 mm base diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°);
UE-O omnidirectional (360°);
UE-UL UniLine® (90°)
ACCESSORIES FURNISHED AT8153 two-stage foam windscreen
AUDIO-TECHNICA CASE STYLE M34
Shock Mounts sold separately
AT8662
AT8646QM
AT8647QMS
AT8699
AT899R UE-UL UniLine® (90°)
ACCESSORIES FURNISHED AT8153 two-stage foam windscreen; AT8662 shock mount
AUDIO-TECHNICA CASE STYLE M34
