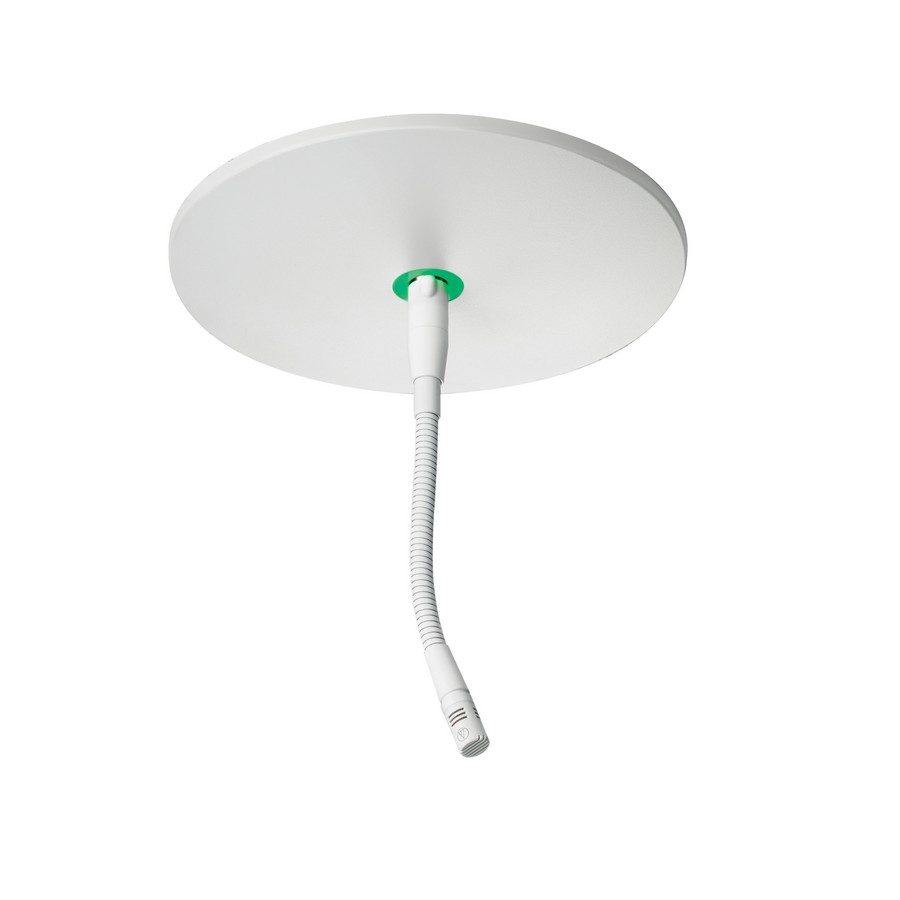

With its low profile and rugged yet highly flexible design, The ATND931WC cardioid condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard® RFI shielding technology for outstanding rejection of radio frequency interference (RFI), attaches to the provided ATND8734 Dante enabled wall/ceiling plate power module via a special TA3F type connector designed to optimize RFI immunity.
The power module is equipped with an 80 Hz low cut UniSteep® filter, three position input gain level selector (+30 dB, +40 dB, and +50 dB), and a red/green LED status indicator (all controlled remotely via third party software*). It mounts in a standard metal U.S. 2 gang electrical box, and its RJ45 output jack allows for easy connection to the network via CAT5e (or better) cable.
This gooseneck mic provides a uniform cardioid polar pattern with 120° acceptance angle, comes with a two stage foam windscreen and is available with low reflectance black (ATND931C) or white (ATND931WC) finish. Additional interchangeable elements – omnidirectional (360°), hypercardioid (100°) and MicroLine® (90°) – are available separately.
Wall/ceiling plate power module with Dante™ network output permits permanent installation in standard, 2 gang electrical box and direct connection to the network via Ethernet cable
Uniform cardioid polar pattern with 120° acceptance angle
Low profile design with low reflectance finish for minimum visibility
Superior off axis rejection for maximum gain before feedback
Logic input accepts external switches for connection to the Dante network
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low frequency attenuation to minimize pickup of undesired ambient noise
Rugged, easy to adjust, small diameter gooseneck can be positioned quickly into desired shape
Available interchangeable elements permit angle of acceptance from 90° to 360°
Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
Available in two colors: black (ATND931C) and white (ATND931WC)
Optional Microphone Polar Patterns;
ESE-MLa MicroLine® Line + Gradient (90° acceptance angle)
ESE-Ha Hypercardioid (100° acceptance angle)
ESE-Ca Cardioid (120° acceptance angle)
ESE-Oa Omnidirectional (360° acceptance angle)
ELEMENT Fixed charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
MAXIMUM INPUT SOUND LEVEL -15 dBu @ +30 dB gain -25 dBu @ +40 dB gain -35 dBu @ +50 dB gain
SIGNAL-TO-NOISE RATIO 68 dB, 1 kHz at 1 Pa
WEIGHT (MICROPHONE) 39 g
WEIGHT (POWER MODULE) 330 g
DIMENSIONS (MICROPHONE) 152.4 mm long (with capsule), 8.4 mm head diameter, 11.6 mm base diameter
DIMENSIONS (POWER MODULE) 148.0 mm diameter, 47.0 mm depth
OUTPUT CONNECTOR (POWER MODULE) RJ-45
CABLE Power module: CAT5e or better required
OPTIONAL INTERCHANGEABLE ELEMENTS ESE-O omnidirectional (360°) ESE-H hypercardioid (100°) ESE-ML MicroLine (90°)
ACCESSORIES FURNISHED ATND8734 wall/ceiling plate power module with Dante™ network output; AT8109(WH) two stage foam windscreen
AUDIO-TECHNICA CASE STYLE M41
