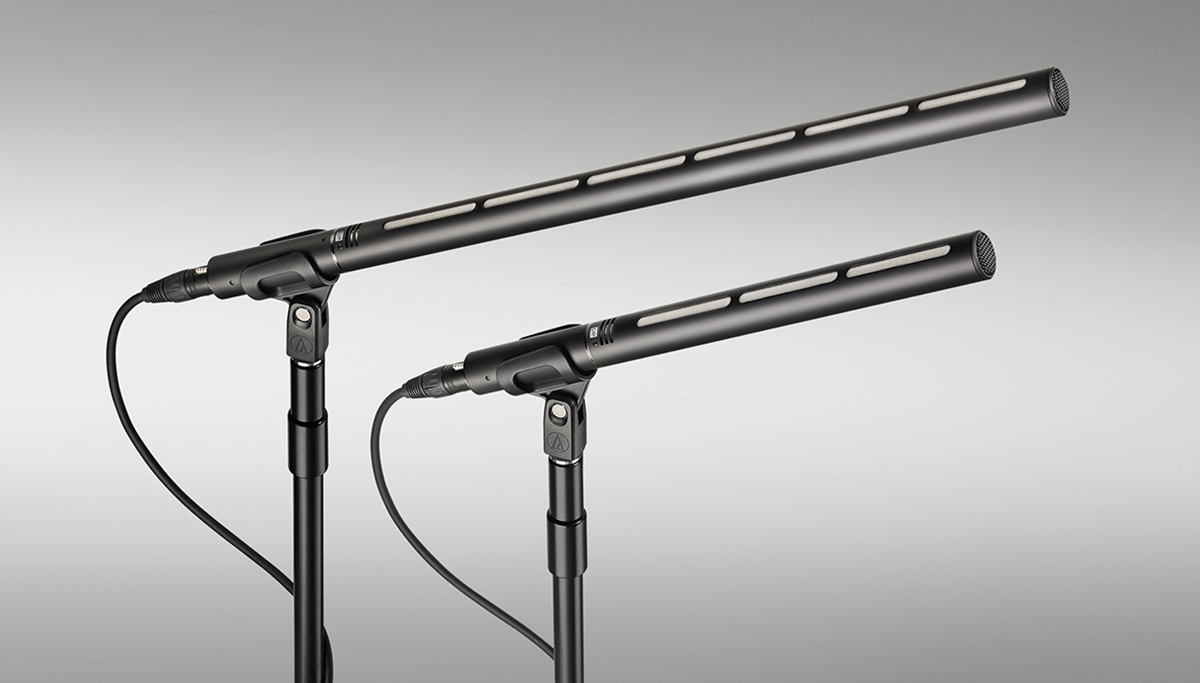

Audio-Technica combines exceptionally low noise large diaphragm condenser elements with a shotgun design for extremely tight polar patterns, perfect for long range sound recordings. With a length of 56.8 cm, the directional BP28L shotgun microphones have been specially designed to meet the needs of broadcast, film, television, recording outdoors and theater applications. Particularly suitable for long distance sound recording in filmmaking or in theatre, the BP28L have a very low noise level (3 dB), and a transformer coupled output results in a smooth sonic character. The microphone provide extremely high sensitivity (-23 dBV), wide dynamic range (135 dB) and high-SPL capability (138 dB). The patented acoustic port design maintains directionality across the entire frequency range.
•Large diaphragm condenser element and optimized circuitry deliver exceptional low noise performance – ideal for film/TV production and broadcasting applications
•Overall length of 567.9 mm with an extremely narrow, highly directional pickup pattern
•Transformer coupled output provides smooth sonic character
•Extremely high sensitivity (-23 dBV), wide dynamic range (135 dB), and high-SPL capability (138 dB)
•Flat frequency response for accurate sound reproduction
•Rugged housing made of lightweight, structural grade aluminium alloy
•Switchable 80 Hz high pass filter and 10 dB pad
•Patented acoustic port design maintains directionality across the entire frequency range
Microphones
Element
Fixed charge back plate, permanently polarized condenser
Polar Pattern
Line directional
Frequency Response
20-20,000 Hz
Low Frequency Roll Off
80 Hz, 18 dB/octave
Open Circuit Sensitivity
-23 dB(70.8 mV) (0 dB=1 V/Pa, 1 kHz)
Open Circuit Sensitivity
-23 dB(70.8 mV) (0 dB=1 V/Pa, 1 kHz)
