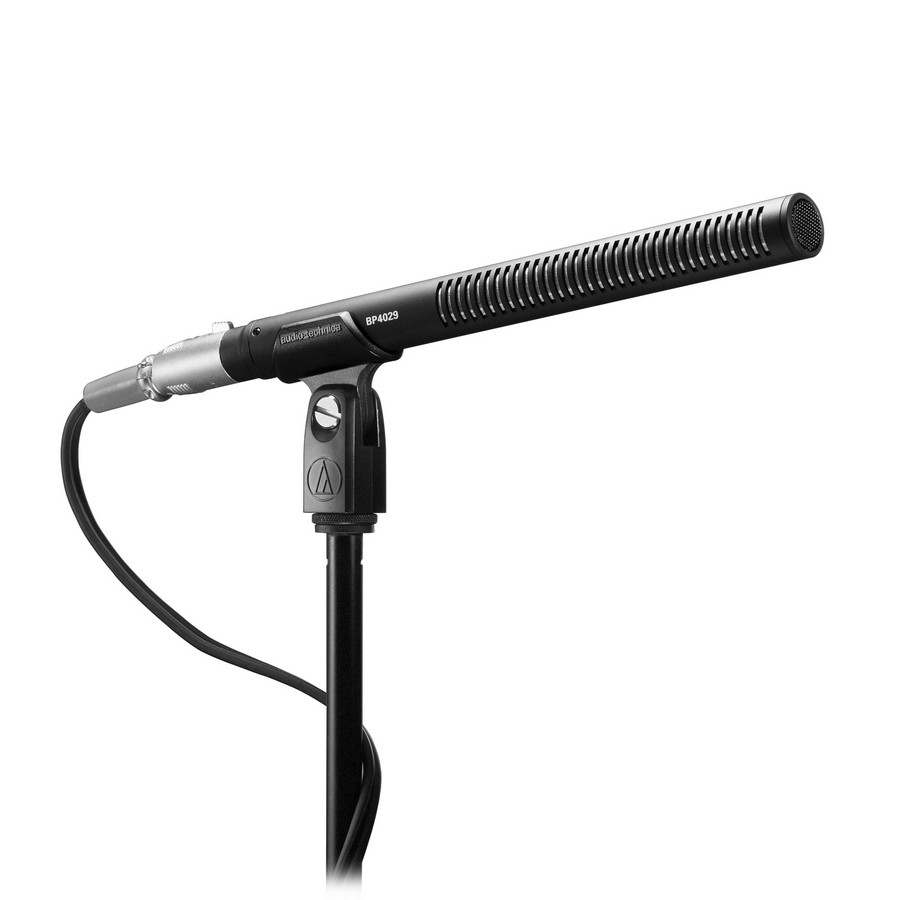

Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the BP4027 and BP4029 Stereo Shotgun models are engineered for high-end broadcast and production use. Both microphones feature independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. These innovative microphones allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone’s internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer.
A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use.
Designed for broadcasters, videographers and sound recordists
Compact, lightweight design is perfect for camera-mount use
Independent Line-cardioid and Figure-of-eight condenser elements
Switchable low-frequency roll-off
Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
Includes a 0.61 m cable (5-pin XLRF to two standard 3-pin XLRM connectors)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
ELEMENTS Fixed-charge back plate, permanently polarized condenser
POLAR PATTERNS Line-cardioid, Figure-of-eight
FREQUENCY RESPONSE 40-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY Mid: -30 dB (31.6 mV) re 1V at 1 Pa; Side: -34 dB (19.9 mV) re 1V at 1 Pa; LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL Mid: 123 dB SPL, 1 kHz at 1% T.H.D.; Side: 127 dB SPL, 1 kHz at 1% T.H.D.; LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Mid: 101 dB, 1 kHz at Max SPL; Side: 101 dB, 1 kHz at Max SPL; LR Stereo: 102 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO Mid: 72 dB SPL, 1 kHz at 1 Pa; Side: 68 dB SPL, 1 kHz at 1 Pa; LR Stereo: 70 dB SPL, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 4 mA typical at 48V, each channel
SWITCHES M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off
WEIGHT 103 g
DIMENSIONS 236.0 mm long, 21.0 mm diameter
OUTPUT CONNECTOR Integral XLR5M-type
CABLE Dual 0.61 m shielded two-conductor, terminated in two XLR3M-type connectors
ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; AT8134 foam windscreen; 5/8"-27 to 3/8"-16 threaded adapter; protective carrying case
