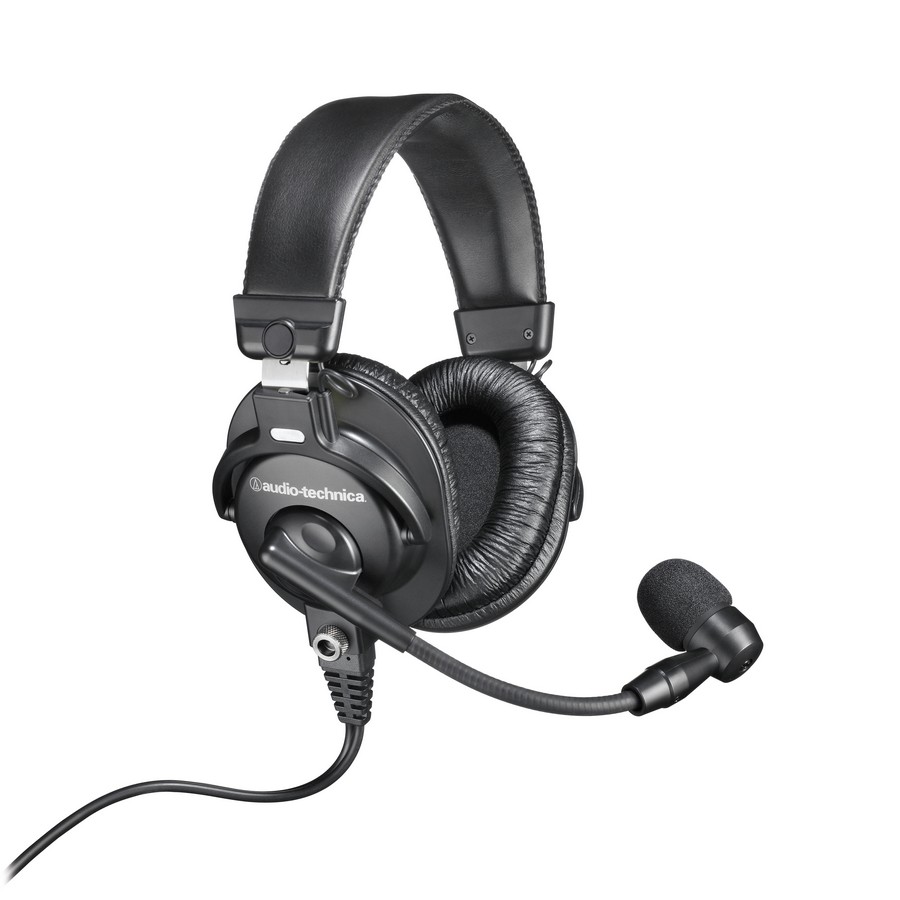

Created especially for on air news & sports broadcasting, announcing & interviews, this rugged stereo headset offers natural, highly intelligible and focused vocal reproduction, closed back circumaural (around the ear) ear cups to seal out background noise, and a high output dynamic microphone mounted on a flexible gooseneck boom. The headset’s microphone has a cardioid polar pattern tailored for pickup of speech with maximum voice intelligibility over a wide range of frequencies. It is more sensitive to sound originating directly in front of the element, making it useful in reducing pickup of unwanted sounds. The flexible gooseneck boom swivels for easy positioning on either the right or left side.
Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction
Closed back circumaural ear cups help seal out crowd noise and other background distractions
Neodymium magnets in microphone and headphones for high output level & detailed sound reproduction
Cardioid pickup pattern of the dynamic microphone rejects off axis sounds
Boom mounted microphone can be positioned on the left or right side
Adjustable cushioned headband and lightweight design for long wearing comfort
Rugged design with user replaceable cable and ear pads
Detachable cable (BPCB1) terminates in 3 pin XLRM type connector for microphone and ¼” 3 conductor for headphone
SPECIFICATIONS
Type Closed back Dynamic (Headphone) ATHM30
Cardioid Dynamic (Microphone)
Driver Diameter 40 mm (Headphone)
Magnet Neodymium (Headphone)
Voice Coil Copper clad aluminum wire
Frequency Response 20-20,000 Hz (Headphone) 40-20,000 Hz (Microphone)
Maximum Input Power 1,600 mW at 1 kHz
Sensitivity 100 dB (Headphone) -57 dB (1.4 mV) re 1V at 1 Pa (Microphone)
Impedance 65 ohms (Headphone) 560 ohms (Microphone)
Weight 264 g
Cable 3.3 m long with 8 pin connector at headset end; 3 pin XLRM type connector (microphone) and 6.3 mm (1/4") phone plug (headphone) outputs
Accessories Included 3 windscreens; spare connector screw
Velvet M50 pads fit tight but work AT8162 windscreen
DIMENSIONS
82.0 mm wide (earcup);
46.0 mm wide (headband);
180.1 mm long (boom), microphone extended;
24.0 mm diameter (microphone)
DIMENSIONS
82.0 mm wide (earcup);
46.0 mm wide (headband);
180.1 mm long (boom), microphone extended;
24.0 mm diameter (microphone) 180.1 mm long (boom), microphone extended;
24.0 mm diameter (microphone)
