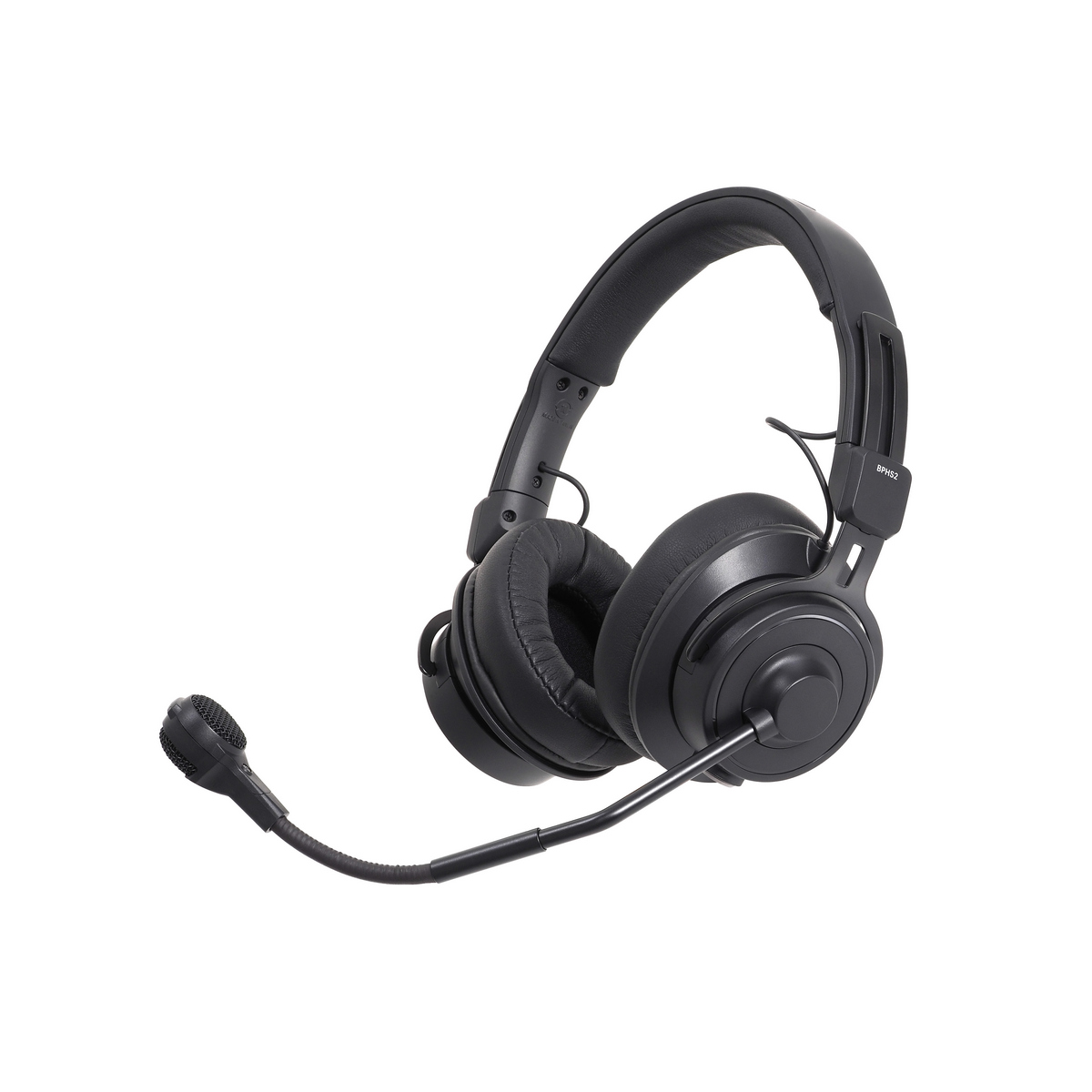

Created especially for news and sports broadcasting, this rugged stereo headset offers highly intelligible and commanding vocal reproduction, along with a comfortable fit and excellent sound isolation. Its low profile, closed back, on ear design is based on the ATHM60x professional monitor headphones and includes the same 45 mm large aperture drivers, and premium, memory foam earpads and headband, giving users a high fidelity headset that’s built to last. The headset’s hypercardioid dynamic microphone keeps the pickup focused on the broadcaster’s voice, even in loud environments, and is tailored to reproduce that voice with a rich, broadcast ready sound. The microphone sits at the end of a rigid boom with a strong, flexible gooseneck section that allows the microphone to be easily adjusted and then stay in place. The boom is also designed to swivel forward and back so that the headset can be worn with the mic positioned on either the right or left side.
The headset comes with a 3.0 m detachable cable (BPCB2) with a TA6F connector at the headset and, at the output end, a 3 pin XLRM type connector for the microphone and a 6.3 mm (1/4") connector for the headphones. An unterminated version of the cable (BPCB3) is available separately.
Also available: BPHS2 Stereo Broadcast Headset with unterminated BPCB3 cable (BPHS2-UT); Stereo Broadcast Headset with cardioid condenser microphone (BPHS2C); Single Ear Broadcast Headset with hypercardioid dynamic microphone (BPHS2S).
Low profile, closed back, on ear design provides excellent isolation and fit
Proprietary 45 mm large aperture drivers (the same used in the ATHM60x pro headphones) with rare earth magnets and copper clad aluminum wire voice coils
Hypercardioid dynamic microphone with frequency response tailored for commanding, broadcast ready vocal reproduction
Carefully crafted using key metal components for lasting durability
Low impedance design delivers high output level from any headphone output
Boom mounted microphone can be positioned on the left or right side
Rigid boom with strong, flexible gooseneck section allows microphone to be adjusted and stay in place
Premium, memory foam earpads and headband allow headset to be worn comfortably for hours on end
Earpads and headband detach for easy replacement
3.0 m detachable cable (BPCB2) with TA6F connector at headset, and 3 pin XLRM type connector (microphone) and 6.3 mm (1/4") connector (headphone) outputs
Unterminated detachable cable (BPCB3) is available separately
Also available: BPHS2 Stereo Broadcast Headset with unterminated BPCB3 cable (BPHS2-UT); Stereo Broadcast Headset with cardioid condenser microphone (BPHS2C); Single Ear Broadcast Headset with hypercardioid dynamic microphone (BPHS2S)
Type Closed back Dynamic (Headphone) Hypercardioid Dynamic (Microphone)
Driver Diameter 45 mm (Headphone)
Magnet Neodymium (Headphone)
Voice Coil Copper clad aluminum wire
Frequency Response 15-28,000 Hz (Headphone) 50-14,000 Hz (Microphone)
Maximum Input Power 1,600 mW at 1 kHz (Headphone)
Sensitivity 102 dB (Headphone) -57 dB (1.4 mV) re 1V at 1 Pa (Microphone)
Impedance 38O (312O when limiter switch is on) (Headphone) 550 ohms (Microphone)
Weight 250 g
Dimensions 23.4 mm diameter (microphone)
Cable Detachable 3.0 m long cable with 6 pin connector at headset end; 3 pin XLRM type connector (microphone) and 3.5 mm (1/8") phone plug (headphone) outputs
Accessories Included Pouch; 3 windscreens; cable clip; 6/3 mm (1/4") screw-on adapter (Microphone)
Maximum Input Power 1,600 mW at 1 kHz (Headphone)
Sensitivity 102 dB (Headphone) -57 dB (1.4 mV) re 1V at 1 Pa (Microphone)
Impedance 38O (312O when limiter switch is on) (Headphone) 550 ohms (Microphone)
Weight 250 g
Dimensions 23.4 mm diameter (microphone)
Cable Detachable 3.0 m long cable with 6 pin connector at headset end; 3 pin XLRM type connector (microphone) and 3.5 mm (1/8") phone plug (headphone) outputs
Accessories Included Pouch; 3 windscreens; cable clip; 6/3 mm (1/4") screw-on adapter
