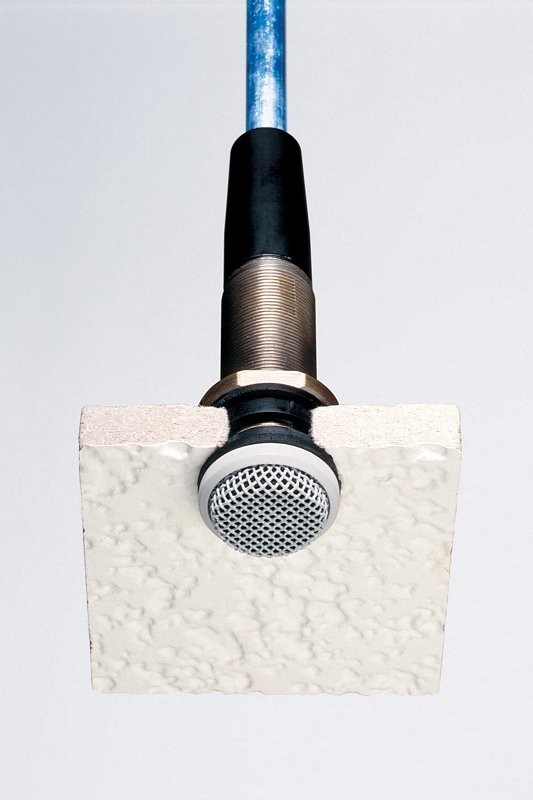

This low-profile omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound reinforcement, professional recording and teleconferencing in table-, ceiling-, or panel-mount applications. The microphone is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone offers unsurpassed immunity from radio frequency interference thanks to Audio-Technica’s UniGuard® innovations. Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone has a 360° pickup angle, and is available in two colors: black (ES945) and white (ES945W).
Designed for surface-mount applications such as high-quality sound reinforcement, professional recording and teleconferencing
Low-profile element provides uniform omnidirectional polar pattern with 360º acceptance angle
Mounts unobtrusively in table-tops, ceilings and wall panels
Self-contained power module with XLRM-type output connector
Rugged all-metal case with a two-layer steel mesh grille
Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Available in two colors: black (ES945) and white (ES945W)
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 40-18,000 Hz
OPEN CIRCUIT SENSITIVITY -42 dB (7.9 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 142 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 112 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
WEIGHT 63 g (2.2 oz)
DIMENSIONS 69.0 mm (2.72") long, 28.0 mm (1.10") diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORY FURNISHED One pair isolators
