Audio-Technica has taken its low profile ES947C cardioid boundary microphone and given it an even smaller footprint, making it a great choice for installations with limited space or where a very clean, inconspicuous look is desired. The miniature ES947C/TB3 still gives you the same clear, highly intelligible audio of its larger sibling, mounting unobtrusively in tabletops, ceilings or panels for conferencing, recording, monitoring and other demanding sound pickup applications
Designed for surface mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Low profile element provides uniform cardioid polar pattern with 120° acceptance angle
Miniature, space saving design enables highly inconspicuous tabletop, ceiling and wall mounting
Self contained power module with TB3M (mini XLR) output connector
Includes a TA3F to XLR cable for use with standard XLR inputs
Rugged all metal case with a two layer steel mesh grille
Rubber Isolators provide mechanical dampening of mounting surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI shielding technology offers outstanding rejection of radio frequency interference (RFI)

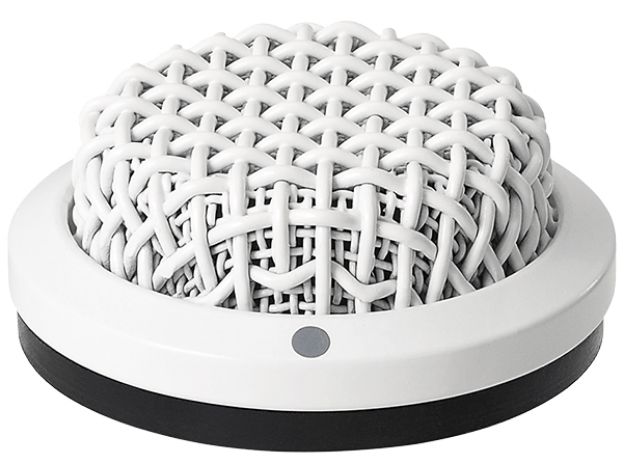

Available in two colours: black (ES947C/TB3) and white (ES947WC/TB3)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
Element Fixed charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 70-15,000 Hz
Open Circuit Sensitivity -38 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance 100 ohms
Maximum Input Sound Level 135 dB SPL (1 kHz at 1% THD)
Dynamic Range (typical) 110 dB (1 kHz at max SPL)
Signal to Noise Ratio 69 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements 11-52V DC, 2 mA
Weight 31 g (1.1 oz)
Dimensions 60.5 mm (2.38") long, 20.0 mm (0.79") head diameter
Output Connector TB3M type
Accessories Included Rubber isolator (x 2), nut, 7.6 m (24.9') microphone cable (TA3F to XLRM)
