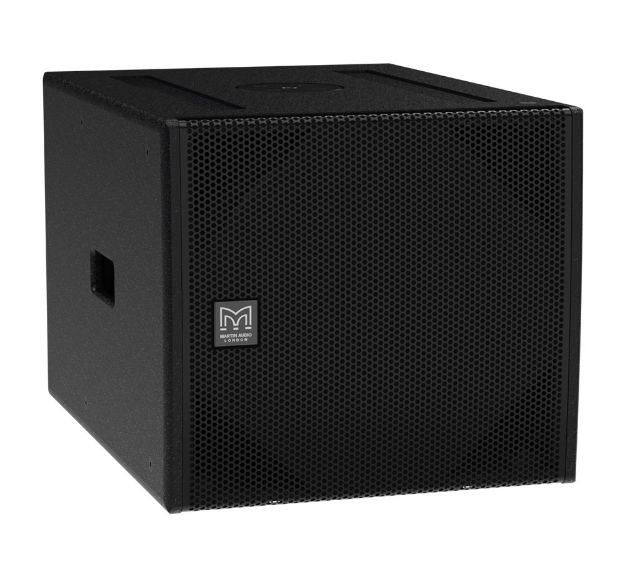

The SX115 is a versatile, passive subwoofer with an operating range of 45-100Hz + 3dB. Featuring a powerful, long excursion 15” (380mm)/4” (100mm) voice coil driver with a water resistant cone and triple roll surround, it delivers dynamic low frequency performance from a very compact enclosure. Four reflex ports increase LF output efficiency and have a large frontal area to reduce turbulent air noise at high levels
Features
Compact, direct radiating subwoofer
Long excursion 15” (380mm)/4” (100mm) voice coil driver with water-resistant cone
High output capability
Plywood enclosure with flying inserts
Large ports for reduced air noise
TYPE Direct radiating subwoofer
CROSSOVER FREQUENCY 100Hz
FREQUENCY RESPONSE 4? (5) 45Hz - 100Hz ± 3dB, -10dB @ 36Hz
DRIVERS LF: 15” with 4” Voice coil, Ferrite Motor
SENSITIVITY (2.83V 1m half space) 100dB
NOMINAL IMPEDANCE 8 Ohms
RATED POWER AES 1000W, PEAK 4000W
MAXIMUM SPL (SYSTEM) 130dB continuous, 136dB peak, 142dB peak (12dB)
DISPERSION Omni Directional/ or Cardioid (paired)
CONNECTORS 2 x NL4
PIN CONNECTIONS (INPUT) 1+/- or 2+/-
PIN CONNECTIONS (LINK) 1+/- and 2+/-
DIMENSIONS (W) 500mm, (H) 451mm, (D) 678mm (806mm with Casters)
(W) 19.69ins, (H) 17.76ins, (D) 26.69ins (31.73ins with Casters)
WEIGHT 36.5kg (80.5lbs)
