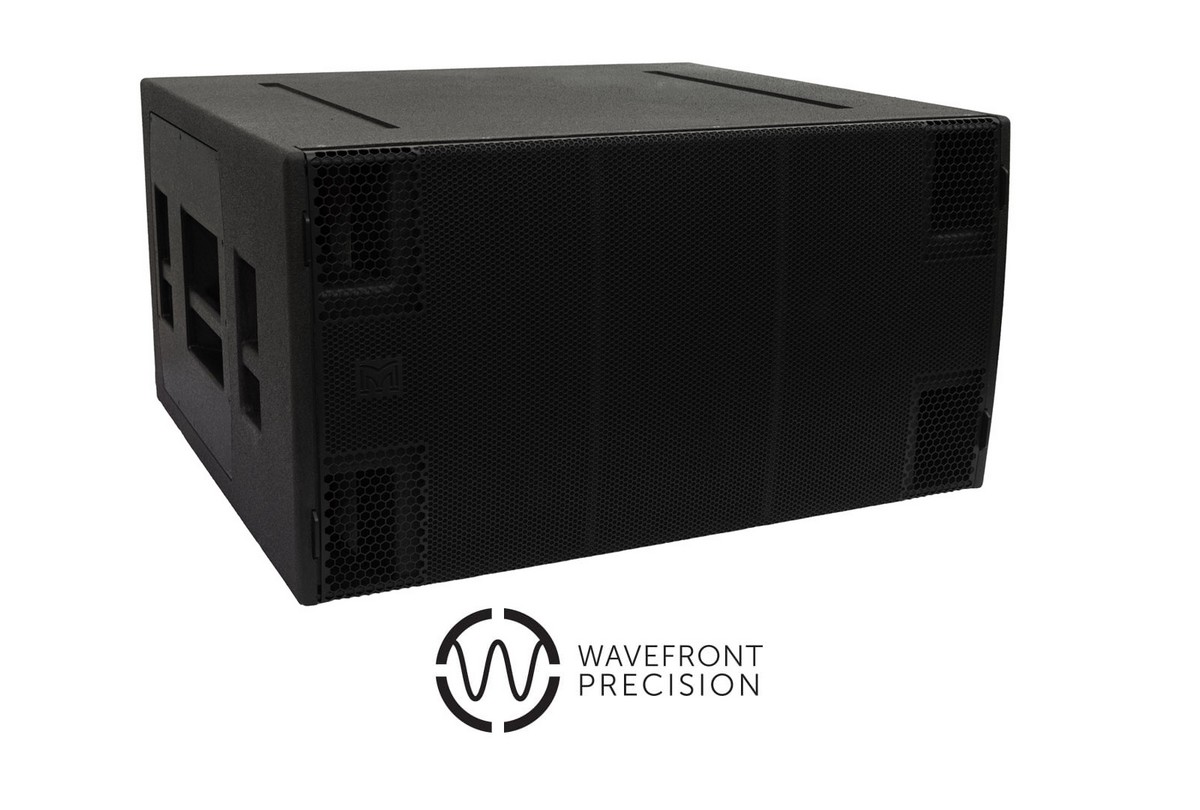

The SXH218 is an extremely powerful subwoofer capable of producing 148dB peak output at 1m. It is the ideal partner for Wavefront Precision WPC arrays where maximum low frequency output is required as well as a standalone solution for premium permanent installations such as nightclubs.
Hybrid® horn/reflex subwoofer
FREQUENCY RESPONSE 32Hz – 150Hz ±3dB, -10dB @ 27Hz
DRIVER 2 x 18” (460mm)/4.5” (115mm) voice coil, long excursion, neodymium magnet, waterproof cone
RATED POWER 3000W AES, 12000W peak
RECOMMENDED AMPLIFIER iKON iK42
SENSITIVITY 107dB
MAXIMUM SPL 148dB peak
NOMINAL IMPEDANCE 4Ohm
DISPERSION (-6DB) Omnidirectional/or Cardioid (paired)
ENCLOSURE Multi-laminate birch/poplar ply
FINISH Textured Black Polyurea
GRILLE Black perforated steel
CONNECTORS 2 x NL4
PIN CONNECTIONS (INPUT) Input: +1/-1, refer to input panel for four-core cable link diagram
PINS CONNECTIONS (LINK) LF1: 1+, 1- LF2: 2+, 2-
FITTINGS
Two skids on base, with mating channels on top
Four rear-mounted 100mm (4in) castors
6 x bar handles, 3 on each side
4 x fittings for optional transit cover
DIMENSIONS (INCL SKIDS)
(W) 1112mm x (H) 607mm x (D) 1013mm (1140mm including castors)
WEIGHT 120kg , with castors 124kg castors)
WEIGHT 120kg (264lbs), with castors 124kg (273lbs)
