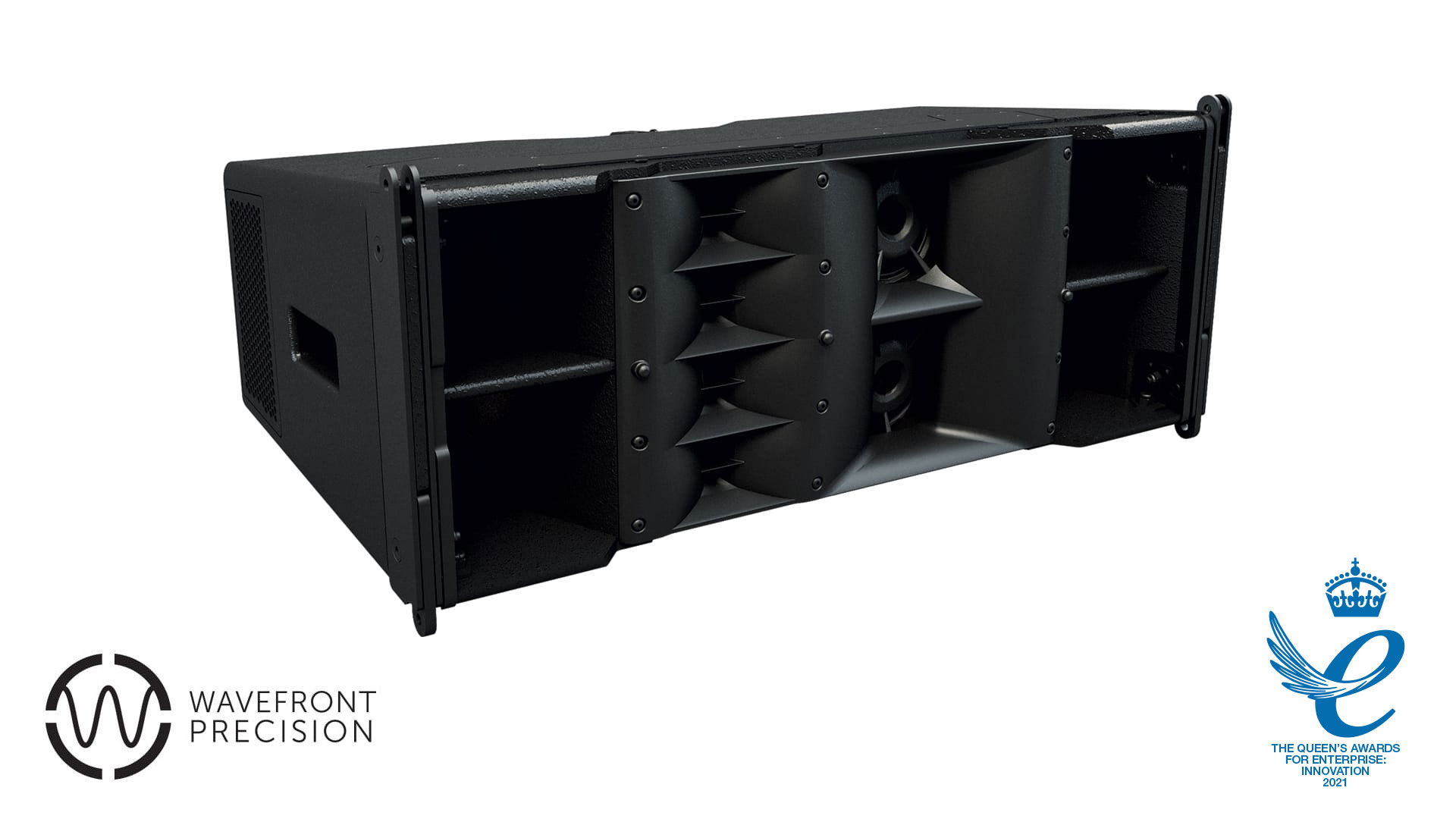

WPC is an optimised line array module with a biamplified three way horn design. 2 x 10" LF/ 2 x 5" MF/ 4 x 0.7" HF in a single enclosure. WPC elements are matched with the IK42 and with Martin Audio display to allow the user to specify the resolution to which the system is optimised from 1 to 3 per circuit. 65Hz-18kHZ +/- 3dB. 100º horizontal. 135dB Peak
Features
Compact line array
Scalable resolution for advanced array control
External, dedicated, multi channel Class D amplification
Industry leading DISPLAY software interacts with DSP for highly accurate results
Fast, integral 3 point flying systems for up to 16 enclosures
Side and rear handles for ease of handling and setting splay angles
100° horizontal constant directivity pattern control
Benefits
Consistent coverage achieved ‘straight out of the box’
DISPLAY intelligent software reduces setup time and eliminates trial and error
Improved audience coverage with reduced sound spill
Applications
Touring sound reinforcement for small and medium size venues
Fixed installations in concert halls, theatres, ballrooms and HoW
Sports stadium, arena installations & corporate AV events
TYPE Three way, bi amp line array element
FREQUENCY RESPONSE 65Hz-18kHz ± 3dB
DRIVERS
LF: 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion, vented pole, neodymium magnet drivers, Hybrid® slot horn loaded
MF: 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded
HF: 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded
SYSTEM RESOLUTION 1 to 3 enclosures per amplifier channel
MAXIMUM SPL 135dB peak
NOMINAL IMPEDANCE
LF: 8 ohm
MF + HF: 8O
DISPERSION (-6DB)
100º horizontal (-6dB), 130º horizontal (-10dB)
10° vertical
CROSSOVER 440Hz active, 4.4kHz internal passive
ENCLOSURE Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar ply construction
FINISH Black textured paint
GRILLE Black HEX perforated steel
CONNECTORS 2 x NL4 type
INPUT CONNECTIONS
LF: 1+/1-
MF + HF: 2+/2-
FITTINGS
3 point rigging system
2 x side pocket handles
2 x rear grip handles
FLOWN ARRAY MAXIMUM 16 enclosures in single array
DIMENSIONS
(W) 772mm x (H) 319mm x (D) 421mm
WEIGHT 35kg
