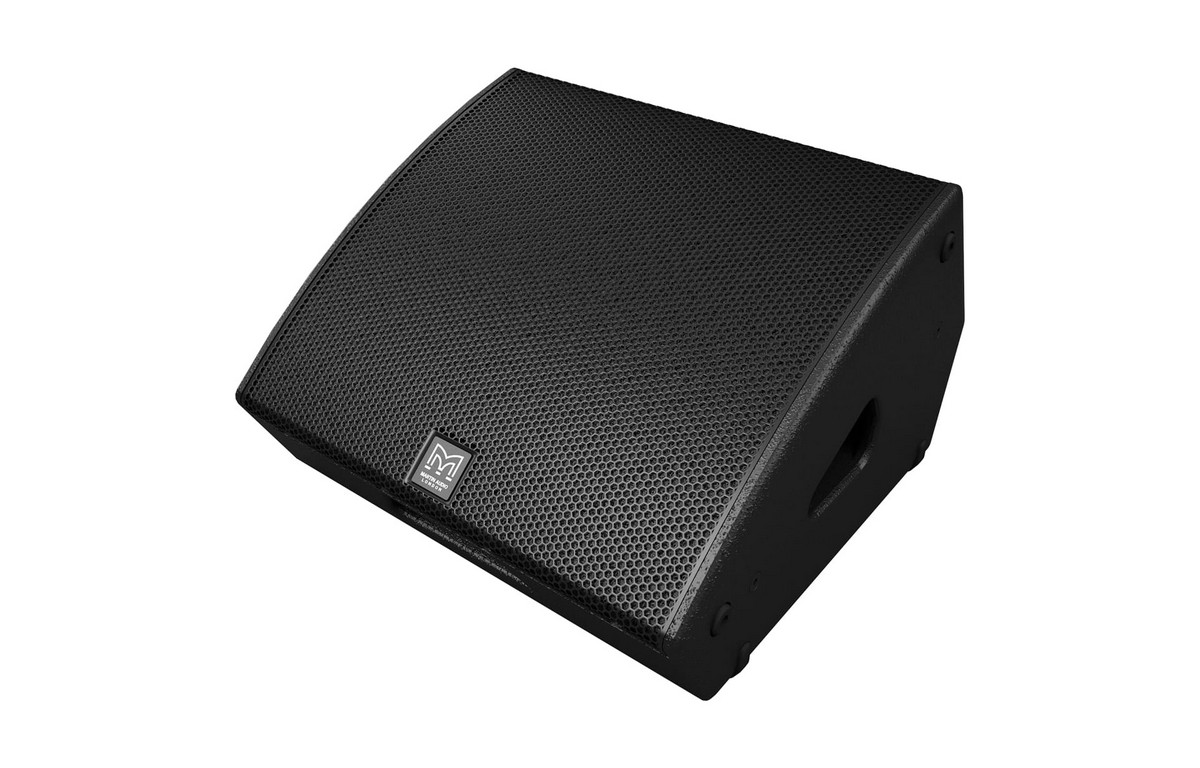

The LE100 is an extremely compact, two way passive monitor. It features a 12” (300mm) LF /1” (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5” (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75” (44mm) polyimide dome and features a low compression phase plug to reduce non linearity associated with overly high compression ratios.
Features
Compact, two way stage monitor
Coaxial ‘point source’ performance
Differential Dispersion™ technology for consistent coverage
Defined, near rectangular coverage plane at head height
Low profile plywood enclosure
Integral pole mount with removable bung
M8 rigging inserts
Multiple connectors for flexible deployment
Applications
Stage monitor
Pole mounted fill/PA system
FREQUENCY RESPONSE 78Hz-20kHz ± 3dB, -10dB @ 58Hz
DRIVERS;
LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER 300W AES, 1200W peak
SENSITIVITY 97dB
MAXIMUM SPL 129dB peak
NOMINAL IMPEDANCE 8O
DISPERSION (-6dB) 110°-60° horizontal, 60° vertical
CROSSOVER 1.6kHz passive
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
GRILLE Black perforated steel with scrim cloth backing
BAFFLE ANGLE 27°
CONNECTORS 5 x NL4 type
PIN CONNECTIONS 1+/1-
FITTINGS 2 x pocket handles Protective rubber feet on base and sides 4 x M8 inserts Pole-mount socket
DIMENSIONS (W) 490mm x (H) 302mm x (D) 472mm
DIMENSIONS INCL FEET (W) 496mm x (H) 305mm x (D) 472mm
WEIGHT 18kg DIMENSIONS (W) 490mm x (H) 302mm x (D) 472mm
DIMENSIONS INCL FEET (W) 496mm x (H) 305mm x (D) 472mm
WEIGHT 18kg 4 x M8 inserts
Pole-mount socket
DIMENSIONS (W) 490mm x (H) 302mm x (D) 472mm
(W) 19.3ins x (H) 11.9ins x (D) 18.6ins
DIMENSIONS INCL FEET (W) 496mm x (H) 305mm x (D) 472mm
(W) 19.5ins x (H) 12.0ins x (D) 18.6ins
WEIGHT 18kg (39.7lbs)
