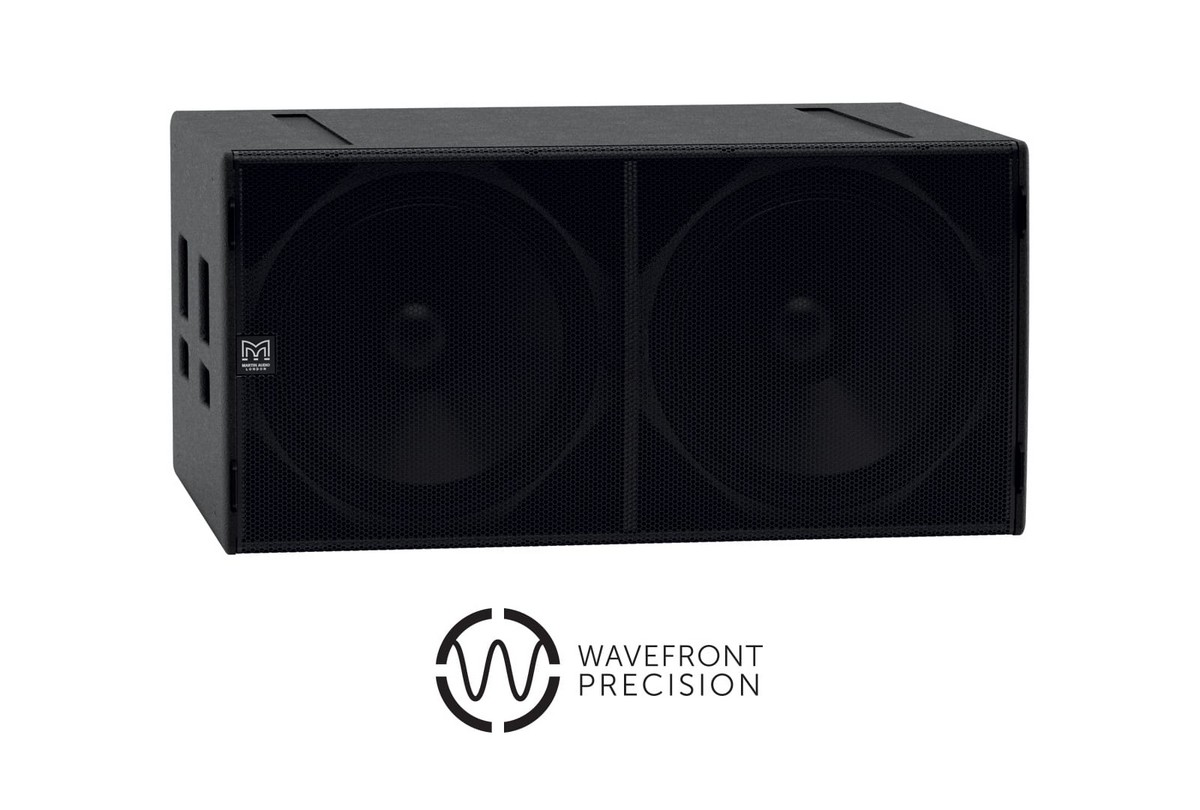

The SX218 achieves the ultimate in subwoofer performance for the most demanding applications delivering very high output levels and superb transient performance with minimal distortion it is the perfect partner to WPC, with one subwoofer to every 2 top boxes required
Features
Dual driver, direct radiating subwoofer
2 x 18” (460mm) / 4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
Very high output capability
Tour grade plywood enclosure with flying inserts
Applications
Live sound reinforcement
Theatre sound
Corporate AV events
Dual driver, direct radiating subwoofer
FREQUENCY RESPONSE 35Hz – 150Hz ±3dB,-10dB @ 30Hz
DRIVER 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER 2000W AES, 8000W peak
SENSITIVITY 105dB
MAXIMUM SPL 144dB
NOMINAL IMPEDANCE 2 x 8Ohm
DISPERSION (-6dB) Omnidirectional / or Cardioid (paired)
ENCLOSURE Multi laminate birch/poplar ply
FINISH Black textured paint
GRILLE Black perforated steel
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) LF1: 1+, 1- LF2: 2+, 2-
PINS CONNECTIONS (LINK) LF1: 1+, 1- LF2: 2+, 2-
FITTINGS
Two skids on base, with mating channels on top
Four rear mounted 100mm (4in) castors
24 x M10 mounting points
4 x bar handles, 2 on each side
4 x fittings for optional transit cover
DIMENSIONS (INCL SKIDS)
(W) 1085mm x (H) 537mm x (D) 792mm
(920mm including castors)
WEIGHT 102kg (36.2in including castors)
WEIGHT 102kg (225lbs)
