For applications that typically require a throw between 15-30m, a full blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL. TORUS is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency

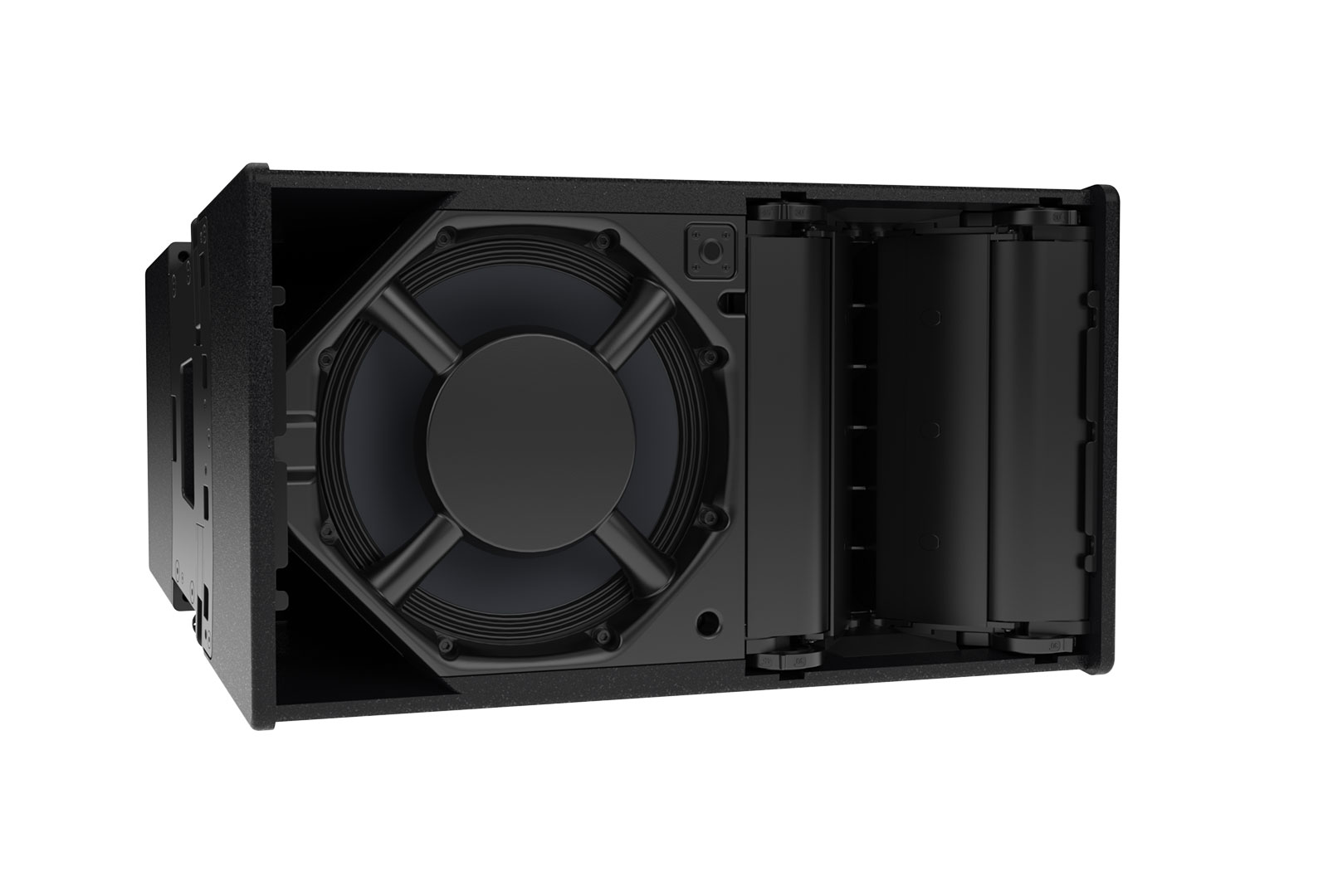

T1215 offers a narrow vertical pattern of 15° with a flexible horizontal pattern that can be manually adjusted between 90°, 60° or 75° (Asymmetrical) via the Dynamic Horn Flare™
Features
1 x 12” (300mm) LF driver & 3 x 1.4” (35mm) HF drivers
Passive fixed angle array cabinet of 15° for a narrow vertical dispersion pattern
Manually adjustable Dynamic Horn Flare™ (between 60°, 90° or 75° Asymmetrical) for flexible horizontal pattern
Phase plug for increased mid band sensitivity
Optimised coverage via DISPLAY 3 and powered by iKON amplifiers
Plug and play system, quick set up and easy rigging
Applications
Optimised for short to medium throw live sound and installation applications
Fills, distributed systems, and centre clusters
Specifications
TYPE Passive 2-way Constant Curvature 15° enclosure
FREQUENCY RESPONSE (WITH IKON SETTINGS) ± 3dB @ 65Hz, -10dB @ 50Hz
DRIVERS LF: 12”, 3” Voice Coil, Neodymium
HF: 3 x 1” exit, 1.4” Voice Coil, HT Polymer dome neodymium compression driver
SENSITIVITY (2.83V 1m free-field) 100dB
NOMINAL IMPEDANCE 8 ohms
RATED POWER AES 400W, PEAK 1600W
MAXIMUM SPL (SYSTEM) 128dB continuous, 134 dB peak*
DISPERSION 60-75-90° horizontal, 15° vertical
PIN CONNECTIONS (INPUT) 1+/- or 2+/-
PIN CONNECTIONS (LINK) 1+/- and 2+/-
DIMENSIONS (W) 650mm, (H) 369mm, (D) 452mm
WEIGHT 31kg
*Martin Audio continues to specify a crest factor of 2 with 6dB between peak and continuous which best mirrors real-world performance. Simply add a further 6dB for comparison with manufacturers quoting a crest factor of 4 ie. 12dB between continuous and peak. ie. 12dB between continuous and peak.
